Page 50 February 2020 – TD 266 OPERATING MANUAL – ZPulse® DCS 4420/4830/4520/4930
The new connection is now shown
in the AADI Real-Time Collector
connection list. Click on the line
with the new connection to
highlight the line and then click on
the Open Port button.
After pressing the Open Port
button the connection to the
SeaGuardII or SmartGuard should
be established within a few
seconds and the status will turn to
green.

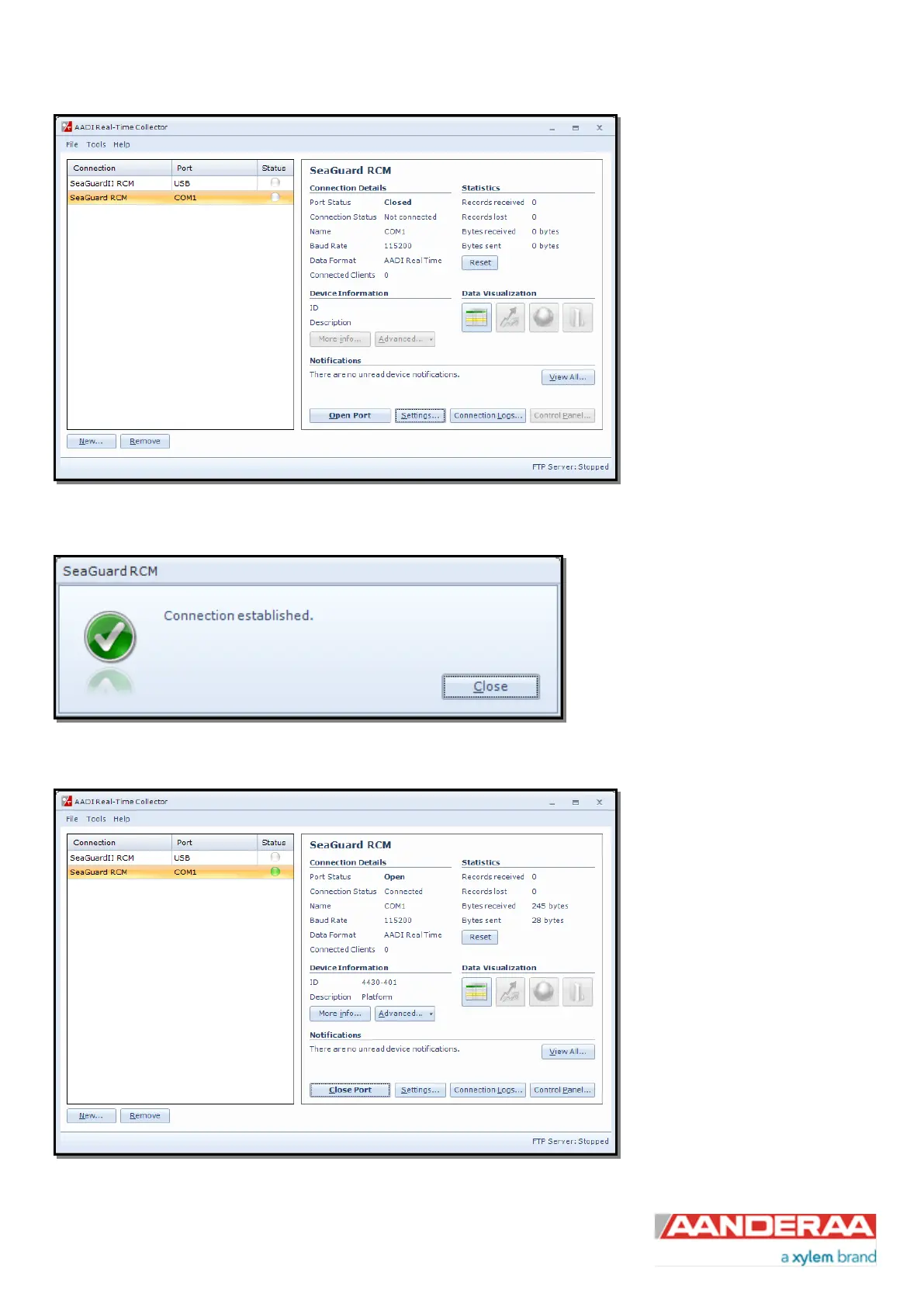

Figure 3-11: New connection
When the connection is established a small
window will show up confirming the
connection. After power up it will take
approximately 30 seconds before the
logger is ready
Figure 3-12: Connection established
Open Control Panel in the lower
right corner (refer Figure 3-13 ),
and then jump to chapter 3.5 for
SeaGuardII and SmartGuard or
chapter 3.7 for SeaGuard
configuration.
Figure 3-13: AADI Real-Time Collector main menu
