Enable Spike Filter Activate/deactivate spike filter; Set yes to activate.
Default is yes. Spike filter tracks and eliminates spikes in measured data.
Enable Axis Strength Enables output of strength X and strength Y.
Result is an average of the two transducers on each axis. Default is no
Enable Transducer Strength Enables output of signal strength from
each of the four transducers. Default is no.

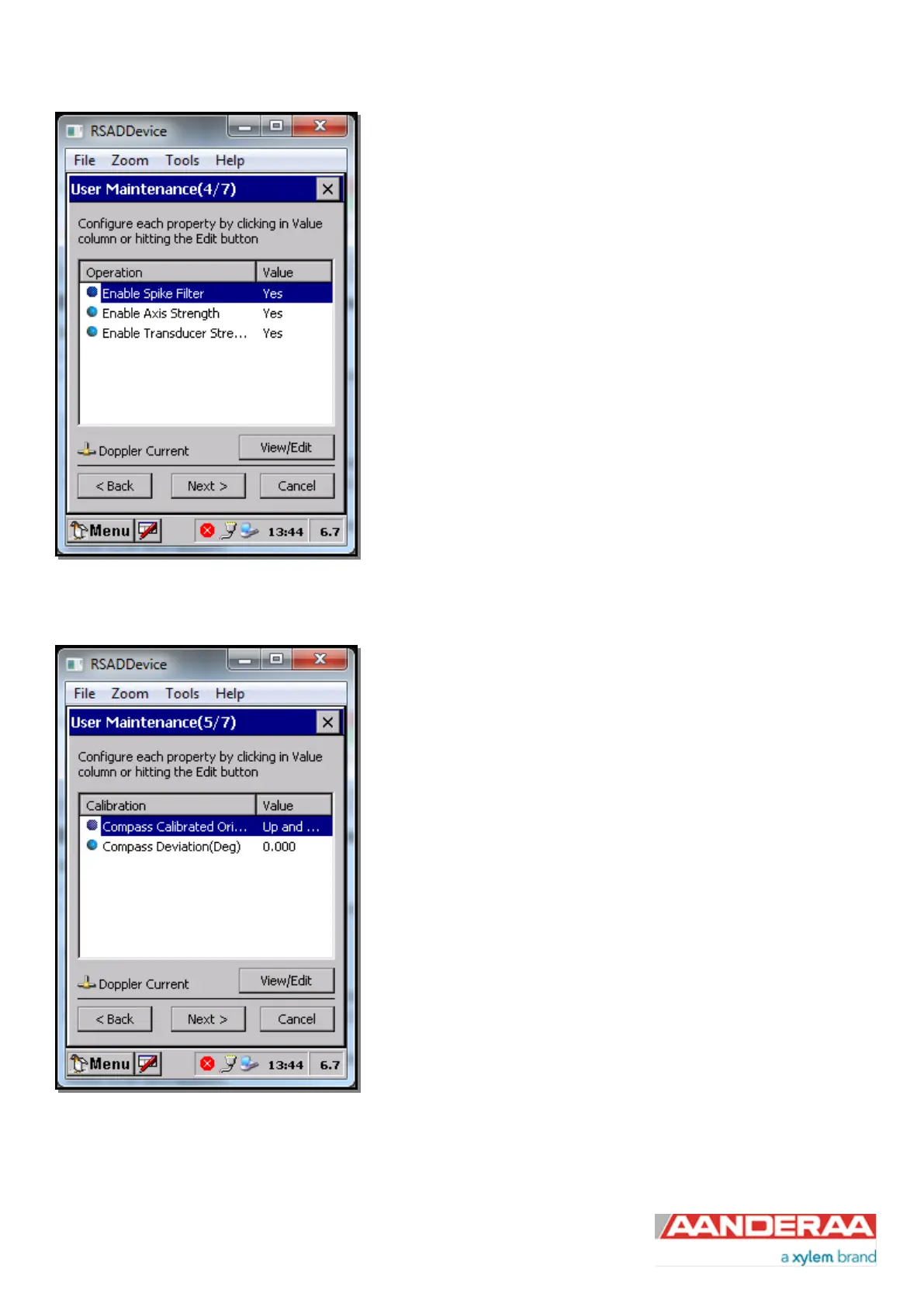

Figure 5-19: Operation
Compass Calibrated Orientation. Indicate the possible operation
direction for the sensor. Available alternative is; Only UP, Only Down or
Up and Down. This setting can only by altered by authorized personal
and reflects the calibration performed. To change the sensor need to be
recalibrated at the factory
Compass Deviation (Deg) Compass offset correction value (deg. M)
Figure 5-20: Calibration
