Single Loop Automatic Operation with Feedforward Section 8 Operation Examples
200 3BUR002418-600 A

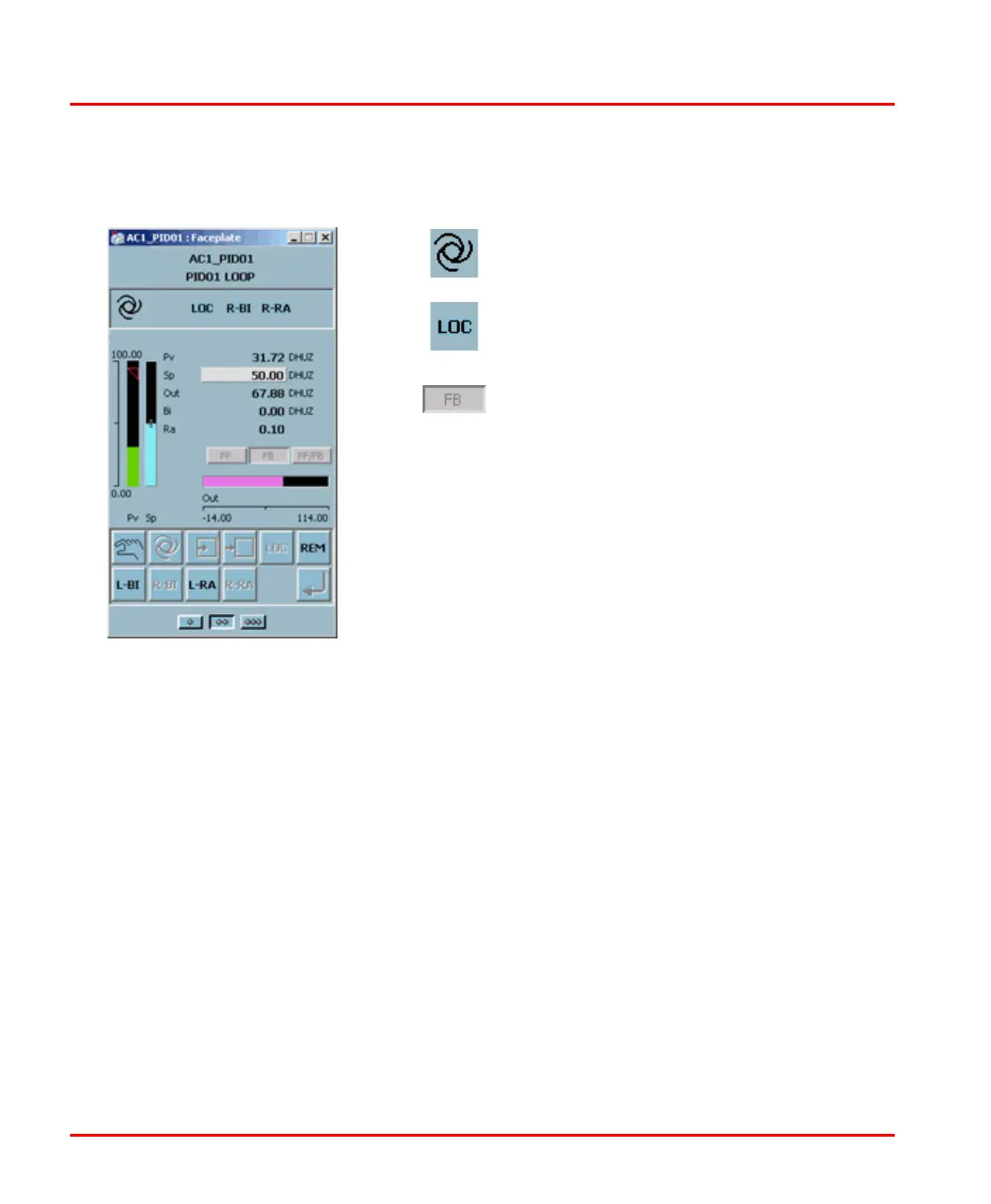

The faceplate display and control button operations for feedforward control
resembles the example shown in Figure 85.
indicates that the controller is in automatic with
feedforward input
.
indicates local setpoint.
indicates that the loop is in the Feedback
mode. Use the [FF] or [FF/FB] buttons to switch
to the Feedforward or Feedforward-Feedback
modes.
Figure 85. Faceplate and Control Buttons for feedforward control
