Section 3 CCF Displays Control and PID Loops
3BUR002418-600 A 35
Fields that do not apply to the type of loop being displayed are left blank and the
labels for these fields are dimmed. For Auto/Manual Controller loops, Figure 5, the
following fields are blank: setpoint; setpoint and deviation alarms; deviation
deadband; and tuning values. See Section 8, Operation Examples, for explanations
on the use of the various loop faceplate types.

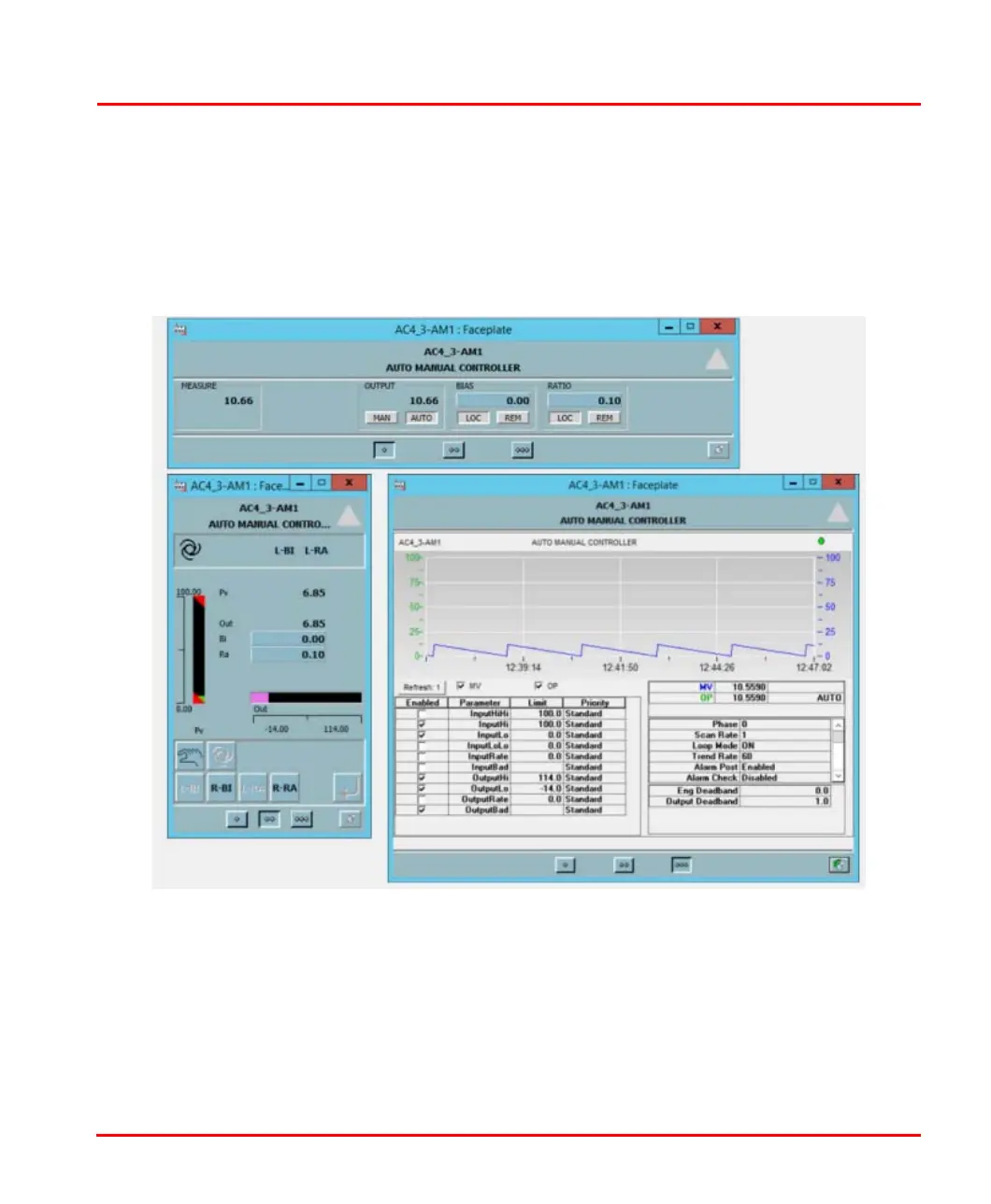

Figure 5. A/M Ratio/Bias Controller Faceplates
