Section 3 CCF Displays Device Loops
3BUR002418-600 A 37
The device loop standard faceplate, Figure 7, is used to modify command, mode,
and state. Only device descriptor state values of 0 to 15 are allowed.
If the Enable Access Restriction configuration is set to Yes, then device commands
are not allowed while in auto (shaded buttons). If the Manual Enable configuration
is set to Disallowed, then the Manual button is shaded to prevent changes back to
manual (may already be in manual before the configuration change). Allow the
Manual Enable configuration change to process before making mode changes.

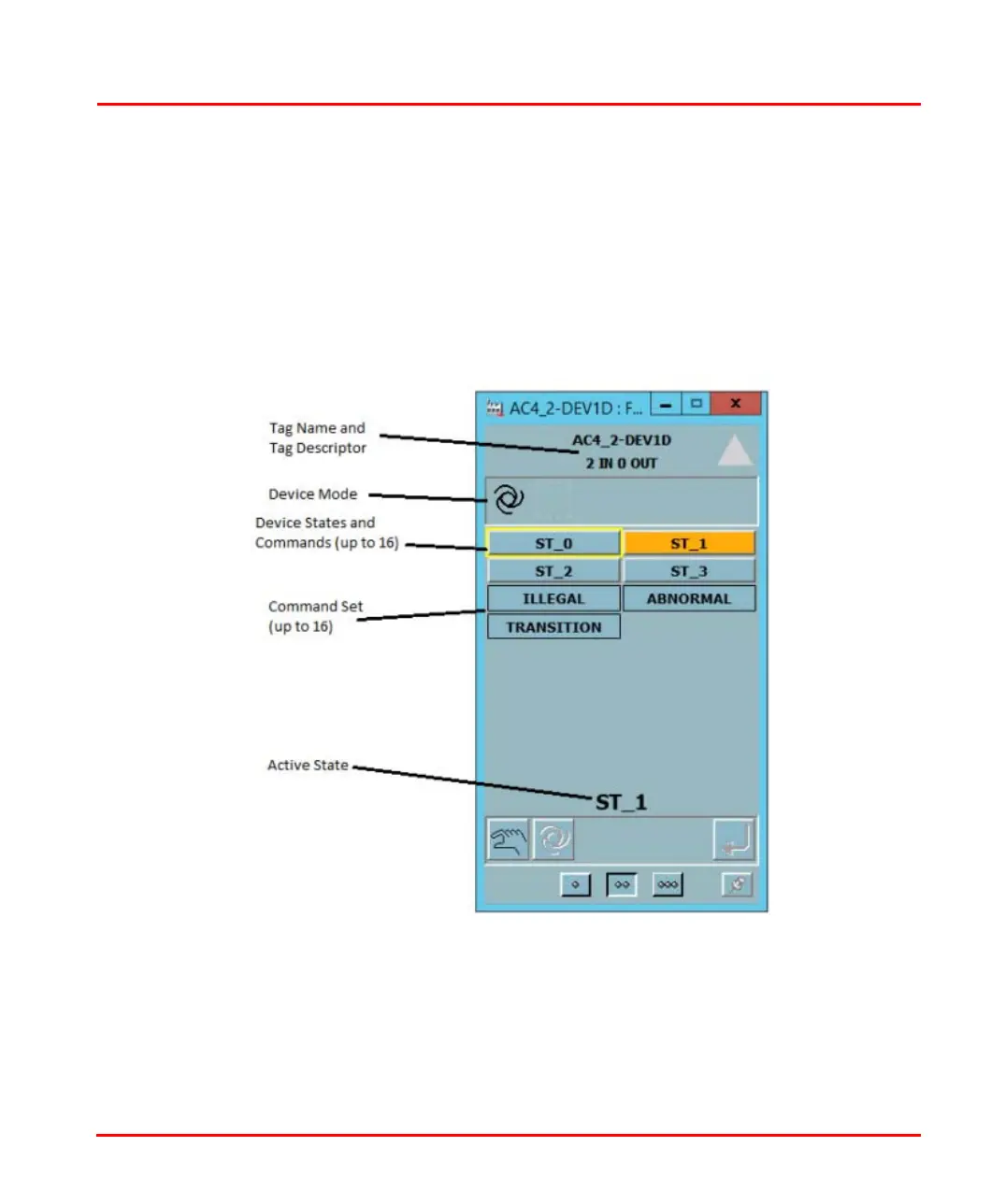

Figure 7. MOD CCF Device Loop Standard Faceplate
