128 ACF5000 FTIR ANALYZER SYSTEM | OI/ACF5000-EN REV. A

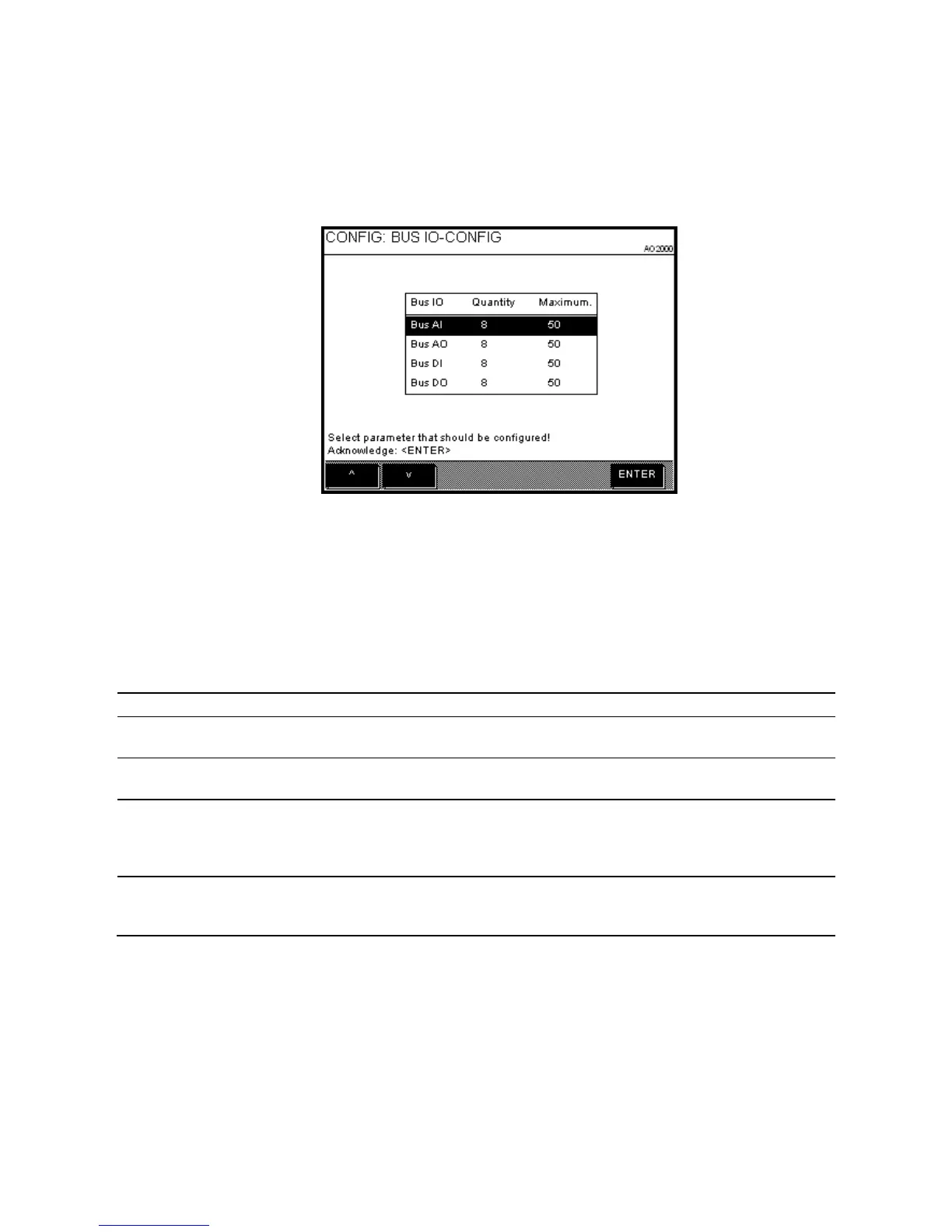

Configuring Bus I/Os

Menu path

MENU → Configure → System → Network → BUS IO

Number of Bus I/Os

Changing the number of Bus I/Os will affect the Modbus address range,

Profibus map and Ethernet linking.

Reducing the number of Bus I/Os may cause transmission errors if the set-

tings in the communication partners are not matched. This may also cause

damage in the function block applications.

Parameter

Parameter Function Read Write Example

BUS AI

Bus analog inputs x x for analog value input into the function

block application

BUS AO

Bus analog outputs x – for analog value output from the func-

tion block application

BUS DI

Bus digital inputs x x for control of functionality such as au-

tomatic adjustment, measurement

range control after function block con-

figuration

BUS DO

Bus digital outputs x – for display of functionalities linked by

function block configuration, e.g. alarm

signaling

ABB ACF5000 User Manual
