FID: Standby/Restart
Menu path
MENU → Service/Test → Analyzer Spec. Adjustment →
Standby/Restart FID

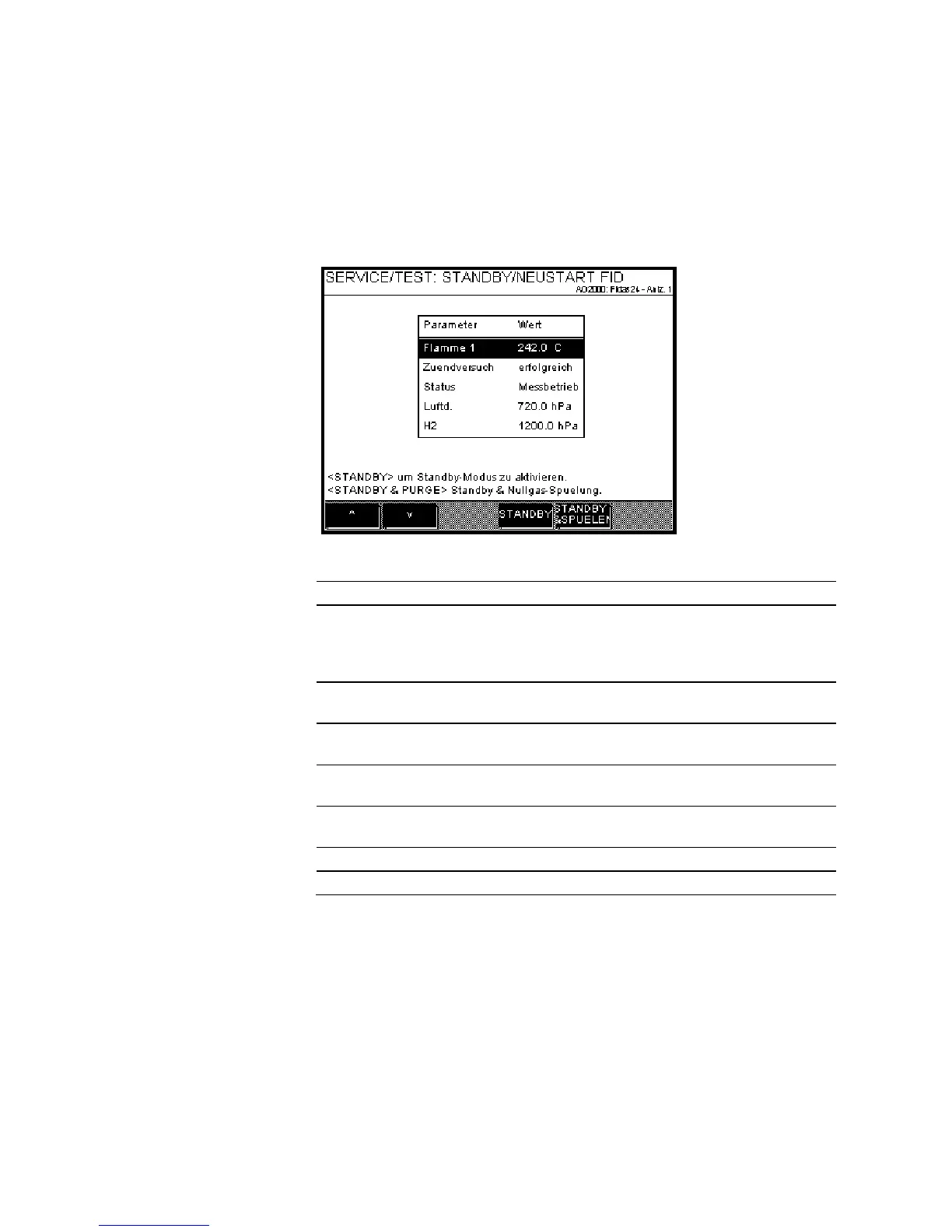

Display of the operating condition of the FID
The key operating data of the FID are displayed:
Flame 1
Flame temperature
Ignition attempt
The number of the ignition attempts is
displayed until the ignition of the flame.
The "successful" display means that the
first ignition attempt was successful.
Status Measuring mode
The analyzer module is OK, the measure-
ment is running.
Standby
The analyzer module is in standby mode;
the measured values are invalid.
Flame error
The flame is deactivated; the analyzer
module needs to be restarted.
Fail safe
The analyzer module has been deactivated
due to a severe error.
Air pr.
Combustion air pressure
H2
Combustion gas pressure
Definitions
Standby mode means: heater on, combustion gas valve closed, combustion
air valve closed, instrument air valve closed, housing purging on, zero gas
valve opened in standby mode with purging of the detector.
Fail-safe mode means: heater off, combustion gas valve closed, instrument
air valve closed, housing purging on, emergency purge activated.
