Replacing filter on the gas sampling probe
Wearing parts
Wearing parts Item no. Replacements
Stainless steel filter with
two FFKM O-ring seals
8329410 At least every 12 months, depending
on the dust content of the sample gas
Seal set with two FFKM
O-ring seals
801994
NOTICE The filter on the gas collection probe is fitted with seals from FFKM. Seals
from FFKM must also be used when replacing the filter.

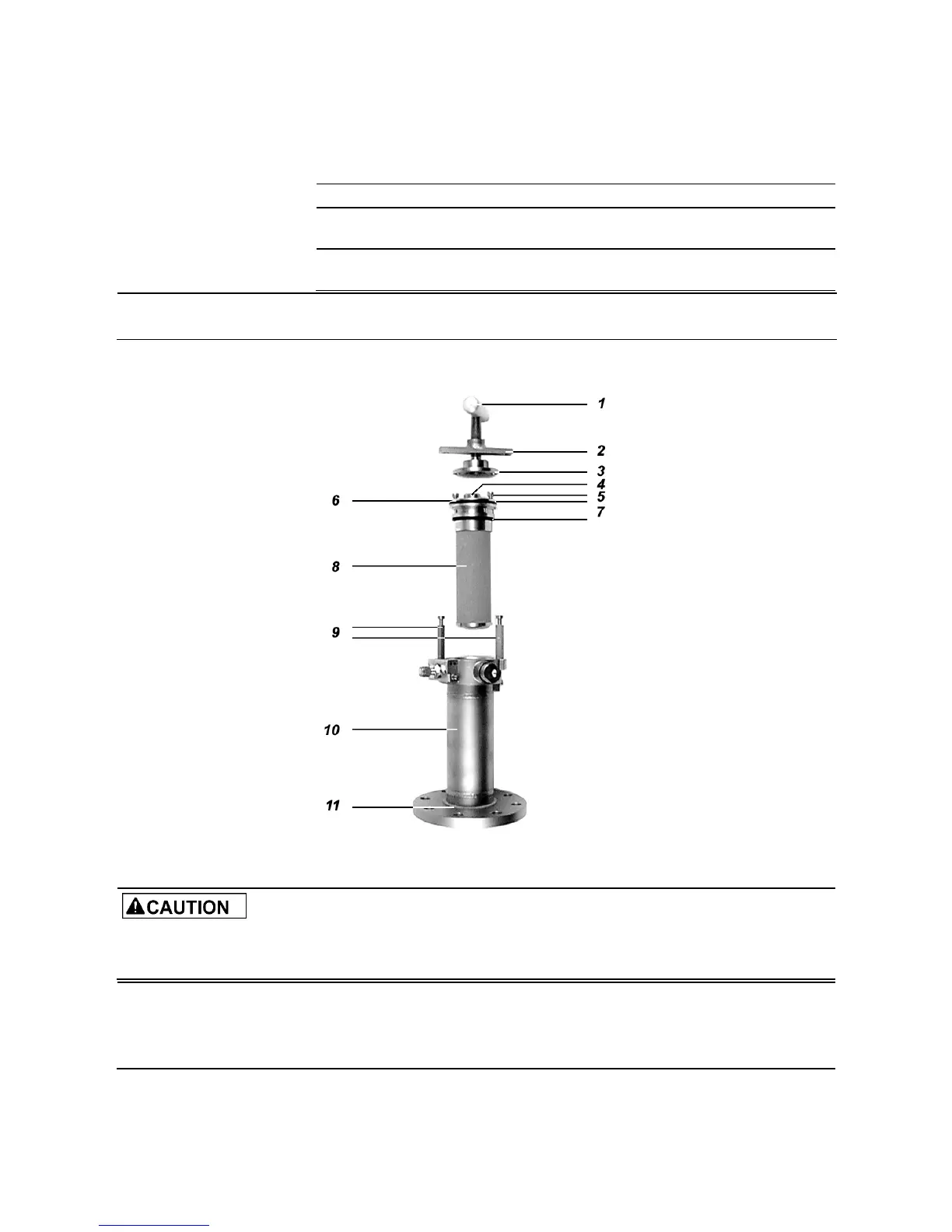

Filter unit
1
T-handle
2
Bridge
3
Detaching disk
4
Screw plug
5
Removal screws
6
Filter holder
7
O-ring seals
8
Filter
9
Bridge holding device
10
Housing
11
without function
Cleaning or replacing filters
Parts of the sample gas sampling unit are hot (approx. 180°C)!
You might come into contact with the sample gas when carrying out the
work described below.
Wear suitable protective gloves and safety goggles!
NOTICE Grease or other impurities on a new or cleaned filter – particularly with an
analyzer system with integrated FID – can falsify the measured values.
When fitting a new or cleaned filter, wear nitrile or latex disposable gloves
from in order to prevent the filter coming into contact with your skin.
