ACF5000 FTIR ANALYZER SYSTEM | OI/ACF5000-EN REV. A 137

Configuring the bar display or point display

1 Select Display menu item.

2 Start configuration of the new display element with NEW.

3 Select the Source parameter.

The function block menu is displayed.

4 Select the function block whose value is displayed.

When configuring the display, it does not matter if a link has been en-

tered for the function block.

5 For the parameters Name, Test point and Source, system default

values are displayed. The parameter Name cannot be changed.

6 Select the Page parameter.

The page overview is displayed.

7 Select the page on which the display element is to be displayed. Only

those pages can be selected with an assignment < 100%, i.e. in which

there is at least one free position.

If the selected page is a system page, the position of the display ele-

ment is set by the system; it can only be changed using Swap Display

(see page 136).

If the new page is a user page, the position must be configured.

8 Select the Position parameter.

The nine possible positions are graphically represented; free positions

are identified by the position number.

9 Select the position with the corresponding number key.

10 Select the Type parameter.

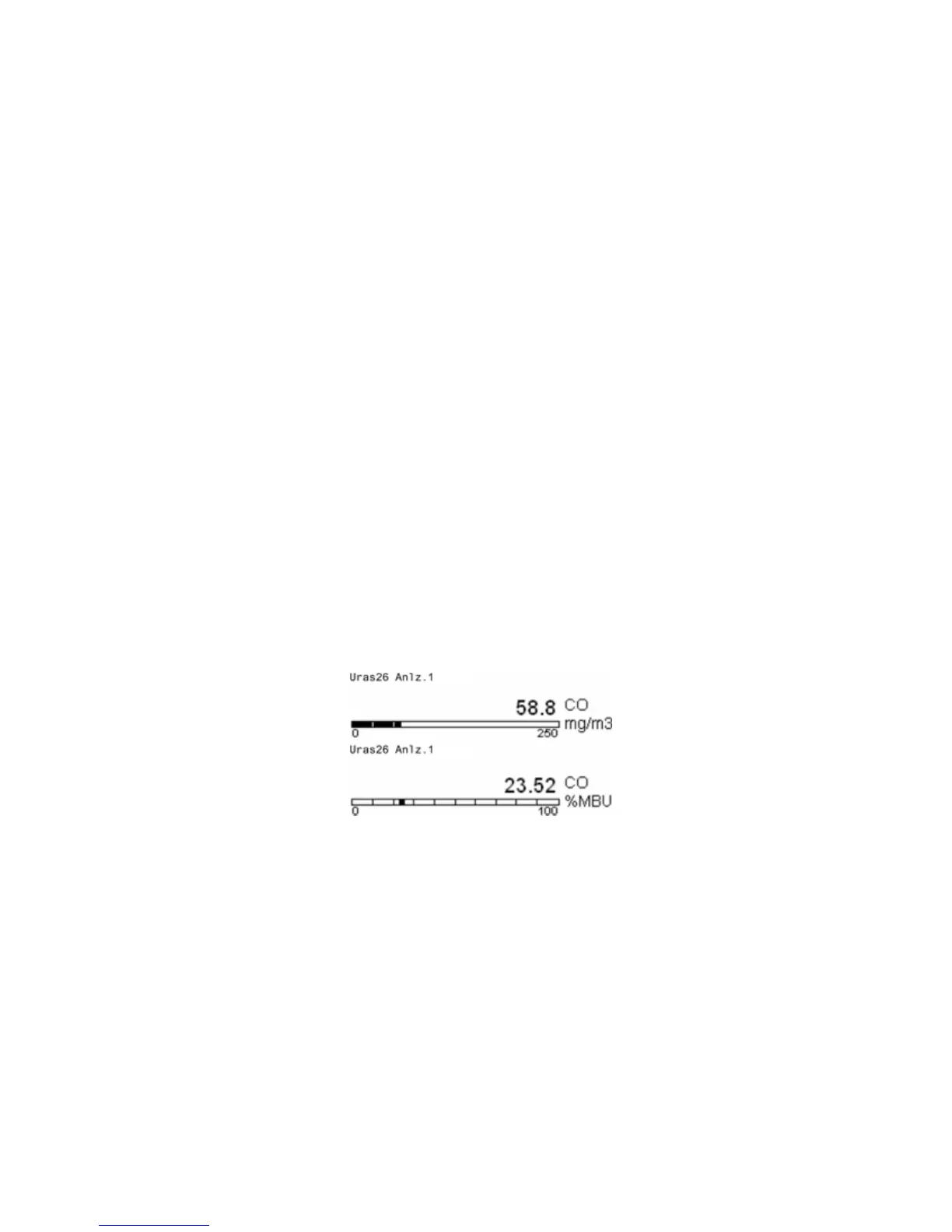

11 Select display type: Bar graph (top of the image) or Point graph

(bottom of the image).

12 Set the parameters Range Low, Range High and Places. If necessary,

change the description of the display element in the parameter Meas-

uring Point.

13 Switch to measuring mode.

The newly configured display element is now shown in the display. The

description of the display element is shown above the display. To the

right of the display, the name and unit of the function block selected in

step 4 are displayed. These two parameters can be changed with the

function block configuration.
