ACF5000 FTIR ANALYZER SYSTEM | OI/ACF5000-EN REV. A 53
Status LEDs
Status LEDs

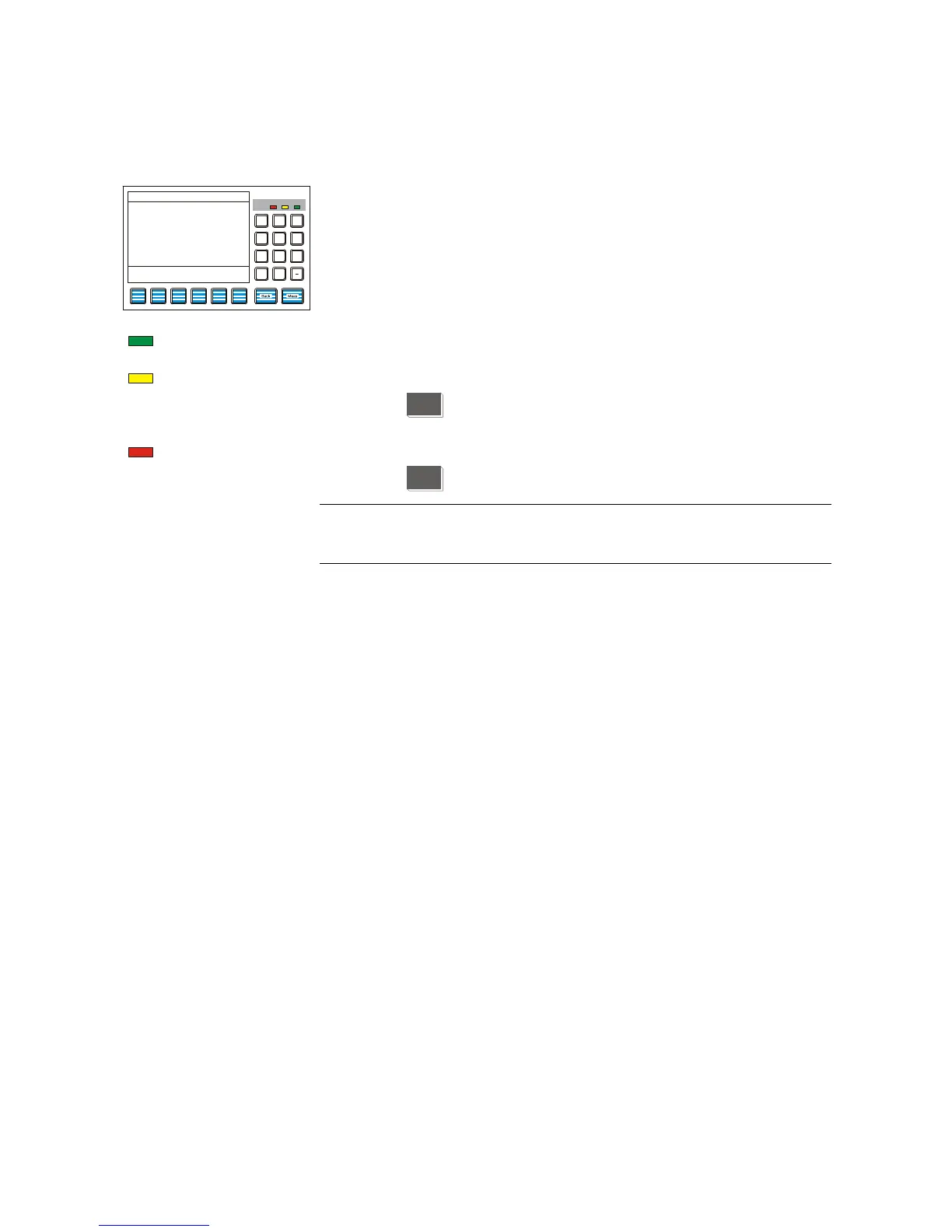

The three LEDs next to the screen show the user the status of the analyzer
system.
The green "Power" LED lights when the power supply is on.
The yellow "Maint" LED lights when the "Maintenance request" status signal
is active.
The softkey appears on the screen at the same time.
The red "Error" LED lights when the "Failure" status signal or the overall sta-
tus signal is active.
The softkey appears on the screen at the same time.
NOTICE
Chapter "Status messages, troubleshooting" (see page 172) contains de-
tailed information on status messages and status signals.
Error Mai nt Power
7
89
654
1
23
0
.
Power
Maint
STATUS
MESSAGE
Error
STATUS
MESSAGE
