Value input
Configuring the value input
Description
The source of the display element Value Input is the function block Con-
stant that is automatically generated during configuration. The output of
this function block accepts the entered value.
For the value input to be effective, the generated function block must be
linked using a function block application after the display is configured (see
Technical Information "Function blocks – Descriptions and configuration" for
detailed description).
Configuration

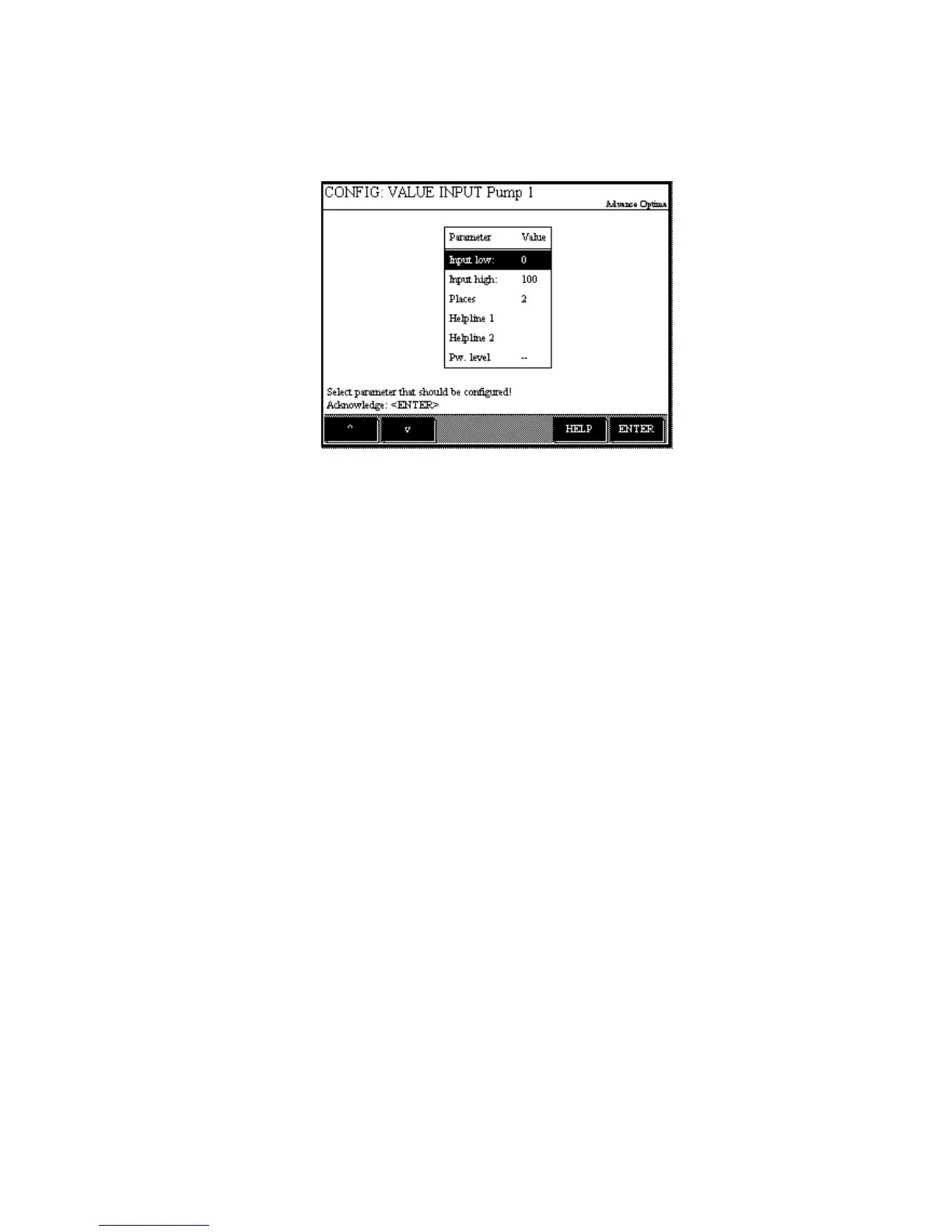

The following are to be configured for the display element Value input
(see page 139)
the start and end of the entry range,
the number of decimal places in the display,
two lines of text that are displayed when the display element is used,
and
the password level on which the entry value can be changed.
Procedure
Values are entered during measurement by pressing the number key that
corresponds to the position of the display element in the display and is in-
dicated above the display element. A field then appears for entering the
value (see "Operating by value input" section, see page 59). The display ele-
ment Value input accordingly represents feedback to the actual value
input.
