ACF5000 FTIR ANALYZER SYSTEM | OI/ACF5000-EN REV. A 67

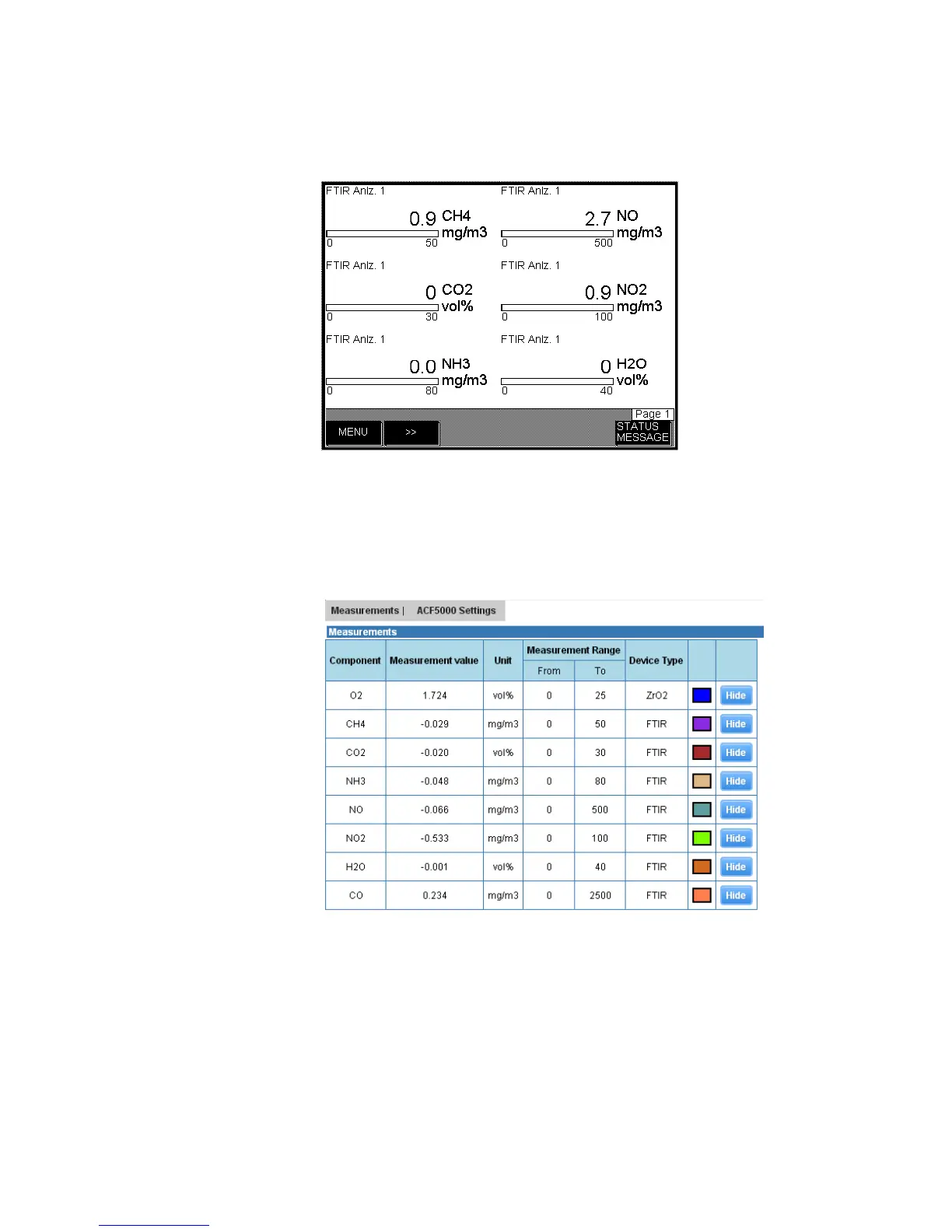

Display of measured value
HMI display
Each display "page" shows the measured values of six measuring compo-
nents.
The >> key allows the operator to scroll to the next display "page". This key
only allows forward scrolling. The "Back" key is used for backward scrolling.
Webpage display
The start page displays an overview of all measuring components with their
current measured values and measuring range limits. Dry basis corrections
or fixed O
2
concentrations are also displayed alongside the corresponding
measured values, as long as these correction functions are configured
(see page 112).
The measured value progression for each measuring component can also be
displayed as a graph. The graph showing the progression of the measured
values is refreshed every five seconds regardless of whether a new meas-
ured value is available.
