Check time conflicts of the automatic processes
Automatic processes in the analyzer system
The following automatic processes can be configured in the analyzer sys-
tem:
the automatic reference (see page 76),
the automatic check of the adjustment (see page 78),
the automatic drift check (see page 83) and
the automatic adjustment of FID (see page 86) and oxygen sensor
(see page 88).
In principle, the duration of each of these processes can be set inde-
pendently of one another. The web page can display the durations of these
processes in calendar form to check if they overlap.
Menu path
ACF5000 Settings → Checking for scheduling conflicts
Password
A level 1 password is required to access this submenu.
Display
Calendar view can be set with the keys.

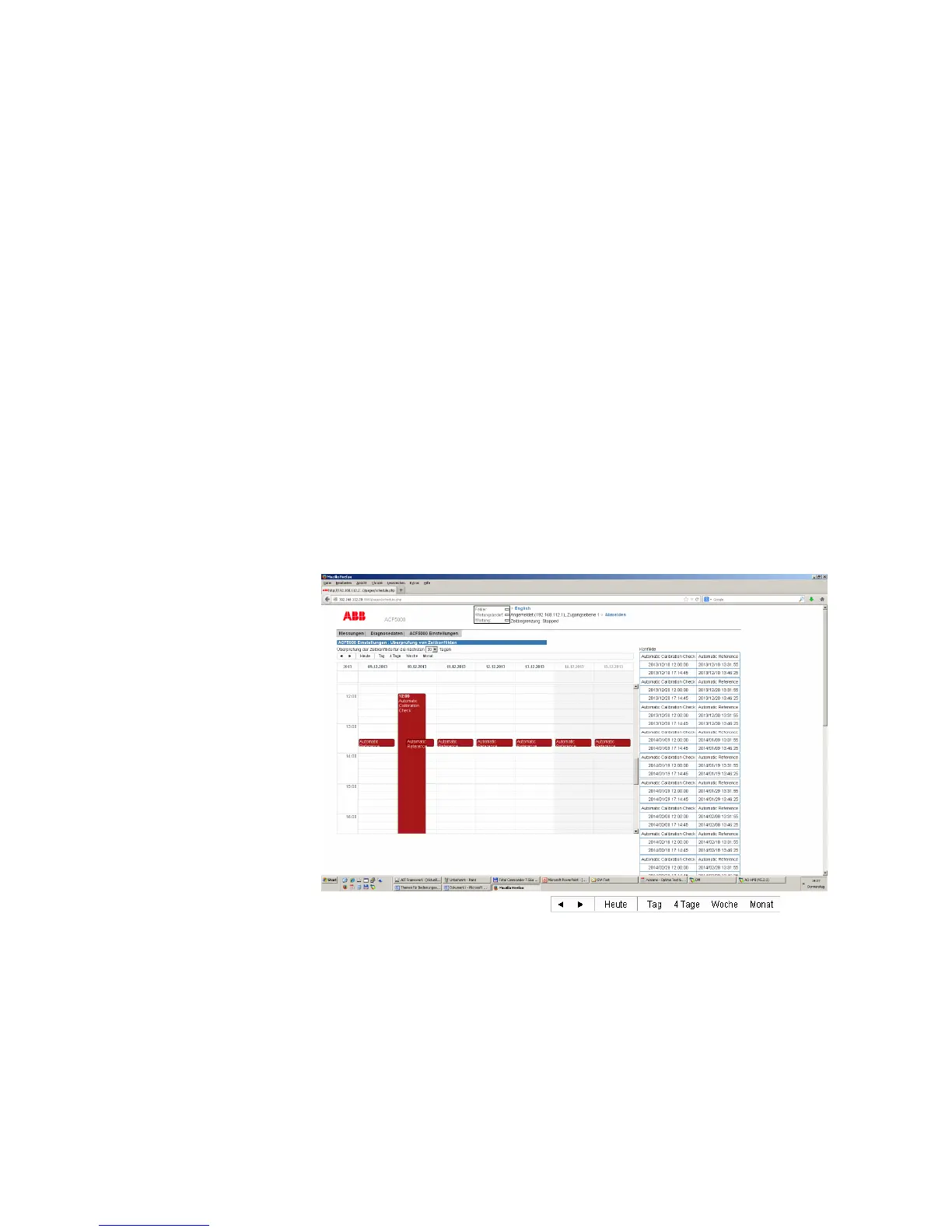

Any scheduling conflicts are displayed as both a graph in the calendar and a
table. The example shown depicts a scheduling conflict between the auto-
matic reference and the automatic check of the adjustment.
The scheduling conflicts can only be corrected in the settings for the indi-
vidual process duration in the corresponding HMI menus.
