34 ACF5000 FTIR ANALYZER SYSTEM | OI/ACF5000-EN REV. A
Installing the analyzer cabinet
NOTICE It is strongly recommended to have the analyzer cabinet
transported by a qualified company
while the cabinet is lying on its back as long as possible and
to stand it up only immediately prior to installation!
Providing the foundation
Refer to the "Requirements for the installation site" (see page 22)
Observe the "Arrangement diagram" in the system documentation.

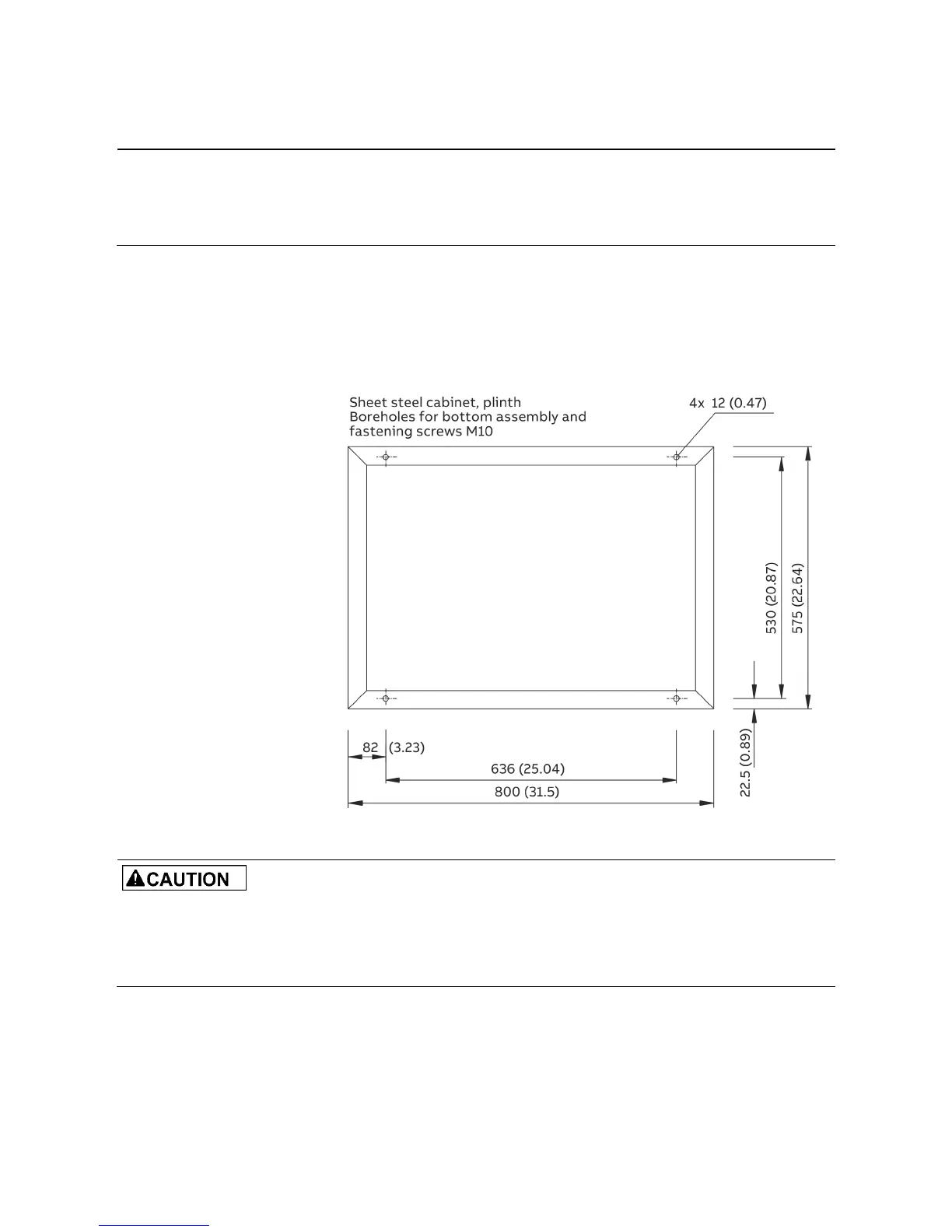

Provide concrete base with cast-in stud bolts (M10) or iron base frame
with holes or grate (see following image, dimensions in mm (inch)).
Unpacking the analyzer cabinet
The analyzer cabinet weighs approx. 300 kg! A crane with suitable transport
gear is required for unpacking and transporting!
To attach the towing ropes to the analyzer cabinet, use the provided
transport lugs.
The pull ropes must be long enough to ensure a minimum angle of 60° when
under tension! Otherwise, the analyzer cabinet may warp.
1 Open the transport case and take out the analyzer cabinet.
2 Do not remove the plastic film in which the analyzer cabinet is wrapped
for the time being! Unpacking the analyzer cabinet when cold can cause
condensation.
3 Remove the plastic film only when the analyzer cabinet has reached
room temperature. This takes at least 24 hours.
