Application program template
413

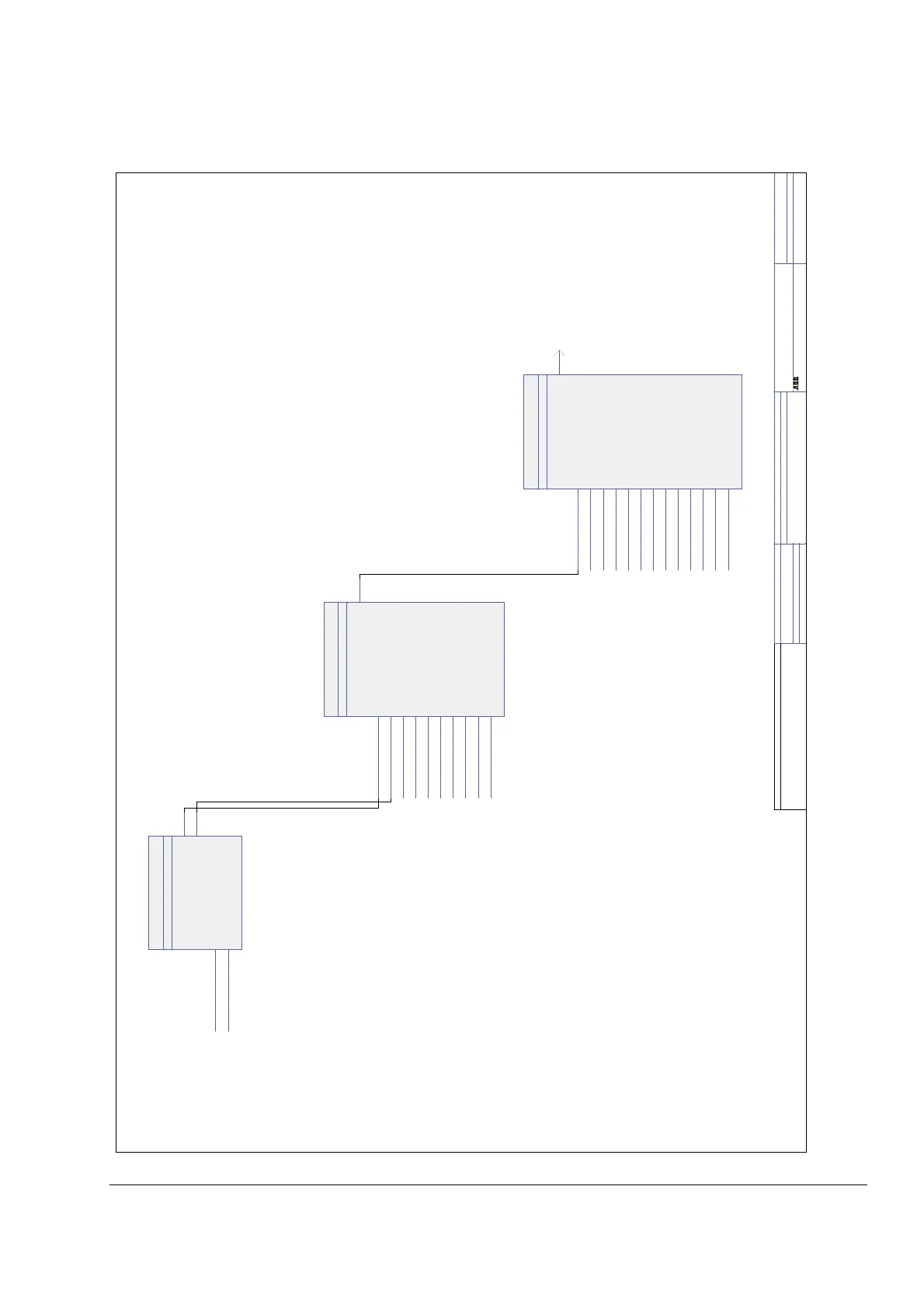

SPEED REF SEL
3
TLF2 500 µsec (1)
24.01 SPEED REF1 SEL
(Drive value)
24.02 SPEED REF2 SEL
(Drive value)
3.01 SPEED REF1 3.02 SPEED REF2
SPEED REF MOD
4
TLF2 500 µsec (2)
< 24.03 SPEED REF1 IN
[ SPEED REF1 ] (6 / 3.01)
< 24.04 SPEED REF2 IN
[ SPEED REF2 ] (6 / 3.02)
< 24.05 SPEED REF 1/2SEL
(Drive value)
24.06 SPEE D SHARE
(Drive value)
< 24.07 SPEEDREF NEG ENA
(Drive value)
24.08 CONST SPEED
(Drive value)
< 24.09 CONST SPEED ENA
(Drive value)
24.10 SPEE D REF JOG1
(Drive value)
24.11 SPEE D REF JOG2
(Drive value)
24.12 SPEE D REFMIN ABS
(Drive value)
3.03 SPEEDREF RAMP IN
SPEED REF RAMP
28
TLF3 250 µsec (1)
< 25.01 SPEED RAMP IN
[ SPEEDREF RAMP IN ] (6 / 3.03)
25.02 SPEED SCALING
(Drive value)
25.03 ACC TIME
(Drive value)
25.04 DEC TIME
(Drive value)
25.05 SHAPE TIME ACC1
(Drive value)
25.06 SHAPE TIME ACC2
(Drive value)
25.07 SHAPE TIME DEC1
(Drive value)
25.08 SHAPE TIME DEC2
(Drive value)
25.09 ACC TIME JOGGING
(Drive value)
25.10 DEC TIME JO GGI NG
(Drive value)
25.11 EM STOP TIME
(Drive value)
25.12 SPEEDREF BAL
(Drive value)
< 25.13 SPEEDREF BAL ENA
(Drive value)
3.04 SPEEDREF RAMPED
Page 6 Speed Ref FWA compatibility leve l = 1.70 Firmware Li brar y ID = 1, ver = 1.0 Standard Library ID = 10000, ver = 1.1
