Appendix C – Homing methods
474

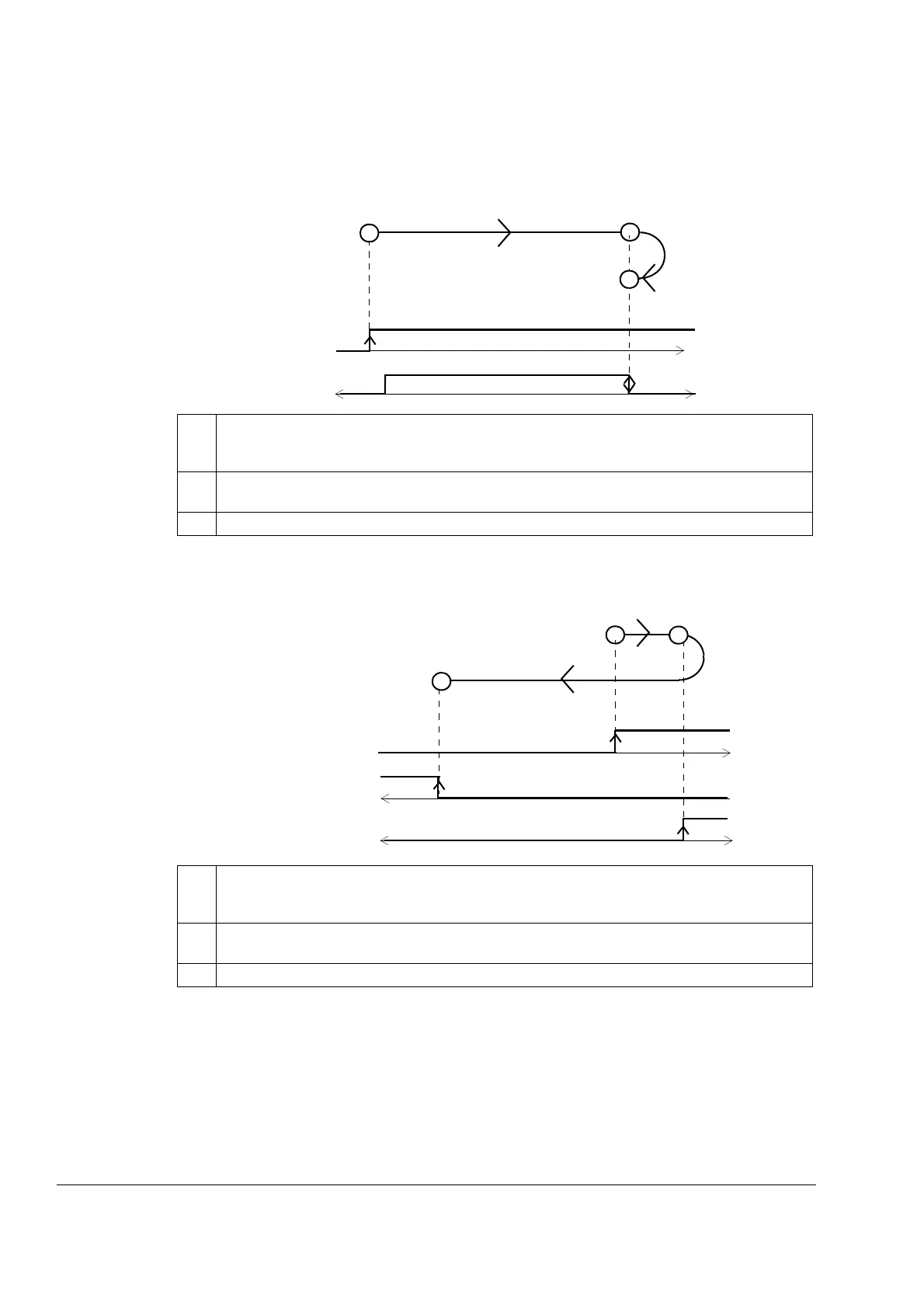

Homing method 25
1 If the state of the home switch is 0: (par. 62.04 HOME SWITCH TRIG): Start in the positive
(right) direction by the rising edge of the signal selected by par. 62.03 HOMING START with
homing speed 1, par. 62.07 HOMING SPEEDREF1.
2 Change direction by the falling edge of the home switch signal selected by par. 62.04 HOME
SWITCH TRIG.
3 Stop by the rising edge of the home switch signal selected by par. 62.04 HOME SWITCH TRIG.
1
2
3
Homing method 25
Homing start (par. 62.03)
Home switch (par. 62.04)
1 If the state of the home switch is 0: (par. 62.04 HOME SWITCH TRIG): Start in the positive
(right) direction by the rising edge of the signal selected by par. 62.03 HOMING START with
homing speed 1, par. 62.07 HOMING SPEEDREF1.
2 Change direction by the rising edge of the positive limit switch signal selected by par. 62.06
POS LIMIT SWITCH.
3 Stop by the rising edge of the home switch signal selected by par. 62.04 HOME SWITCH TRIG.
1
2
3
Homing method 25
Homing start (par. 62.03)
Home switch (par. 62.04)
Positive limit switch (par. 62.06)
