An I/O subrack is mounted in a hinged frame while the connection units for the different
I/O boards are mounted in the rear backplane. Use the 24-inch installation width for the
connection units in RM500V1.
Figure 1-51 shows a W\SLFDO cabinet configuration in a RM500V1 cabinet.
The location of subracks, connection units and power supply equipment is standardized.
However, the design is always adapted to the actual application and shown in the delivery-
specific documentation.
All units in the cabinet are identified in accordance with the item designation system used for
the Advant OCS products. See Appendix D, Item Designations

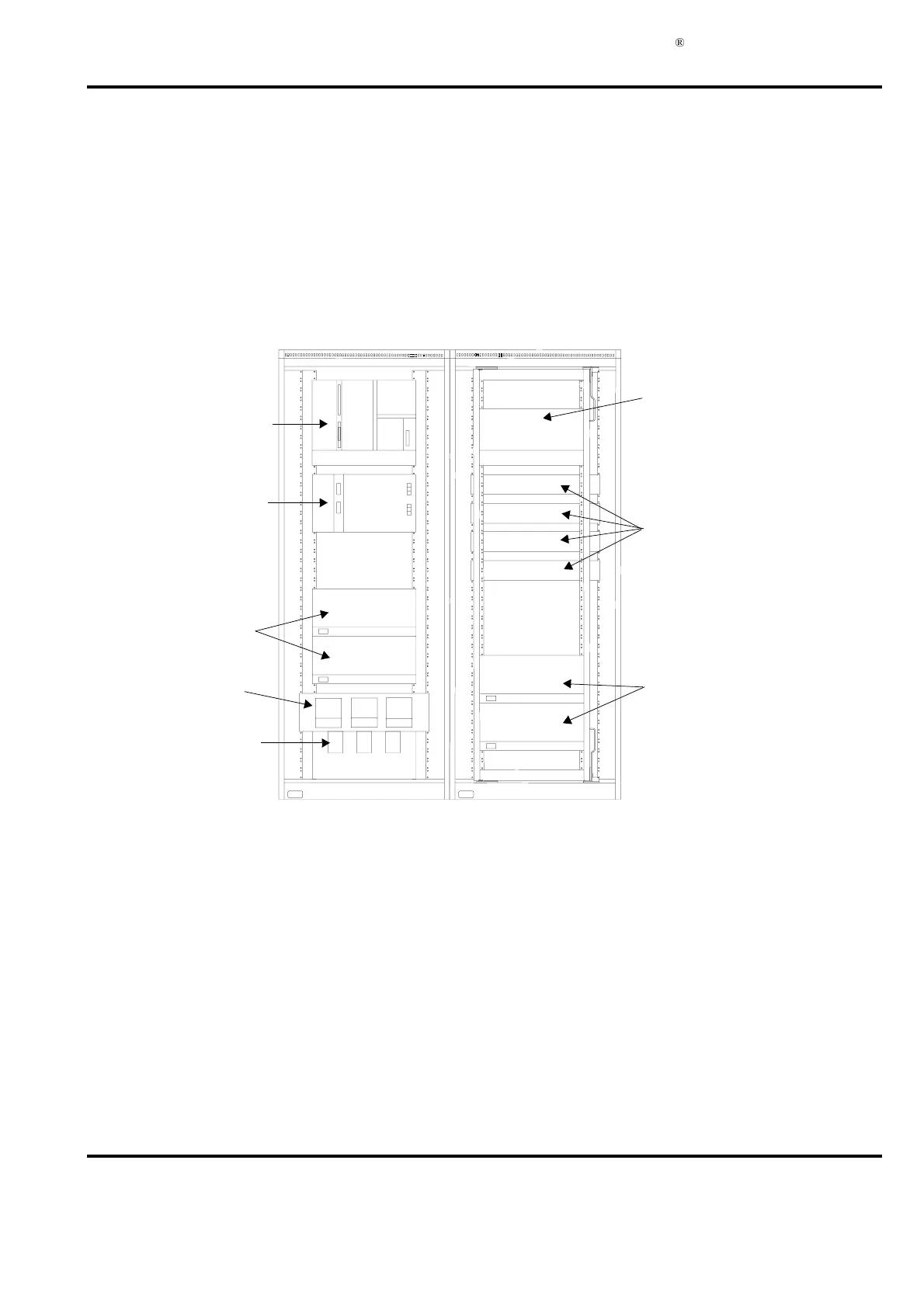

)LJXUH  7\SLFDO&DELQHWPLQLPXP&RQILJXUDWLRQ5HGXQGDQW3RZHU6XSSO\
Mains Net Filter
(CE-marked
Versions Only)
Controller Subrack
Power Supply
(SA16x)
Power Switch
and Distribution
Field Power Supply
(SA16x)
I/O Subrack
Connection Units
Modem Subrack
