Chapter 5 Maintenance
5-56 3BSE 002 415R701 Rev A
CI541V1 No jumpering - On-line replacement possible only together with the hole
Carrier-card
- Described in:
PROFIBUS-DP
Advant Controller 400 Series
CI543 No switches are used in the
GCOM application
- On-line replacement possible
- Described in:
MasterNet User’s Guide
CI570 No jumpering - On-line replacement possible
- Described in:
MasterFieldbus and S400 I/O
CI572
CI573
No jumpering - On-line replacement possible
- Described in:
Advant Interface to LONWORKS User’s Guide
CS513 Switches are used to:
- Set node address
- Select MB 300 or MB 300E
- Select function “executed in
main CPU” or “executed in
slave CPU”
- On-line replacement possible
- Described in:
MasterNet User’s Guide
MB510 No jumpering - On-line replacement possible
- Described in: Appendix A, Hardware Modules

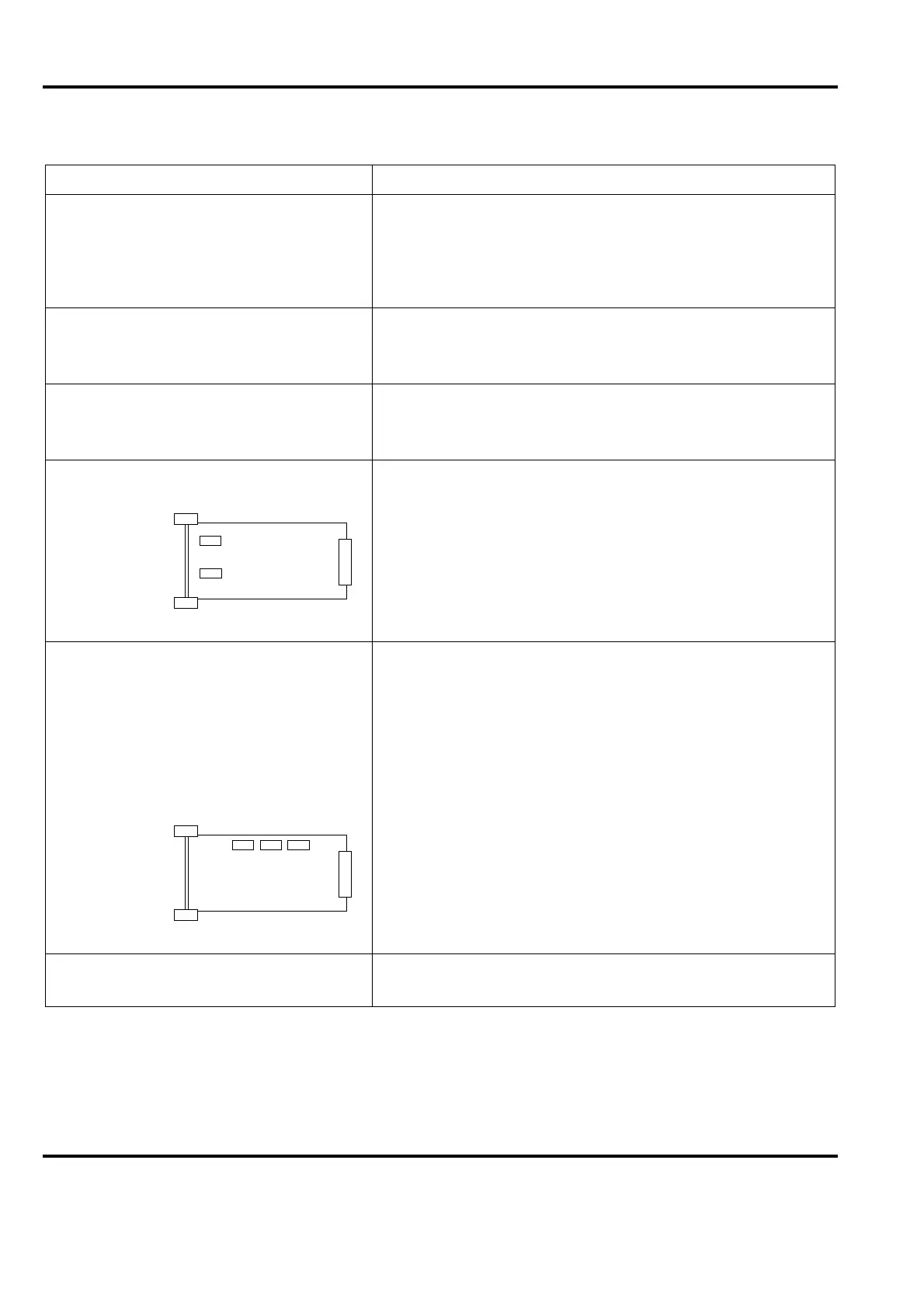

Table 5-1. Replacement Aspects of Individual Board Types (Controller Hardware) (Continued)
Board type - Jumpering Comments
S1
S2
S3 S2 S1
