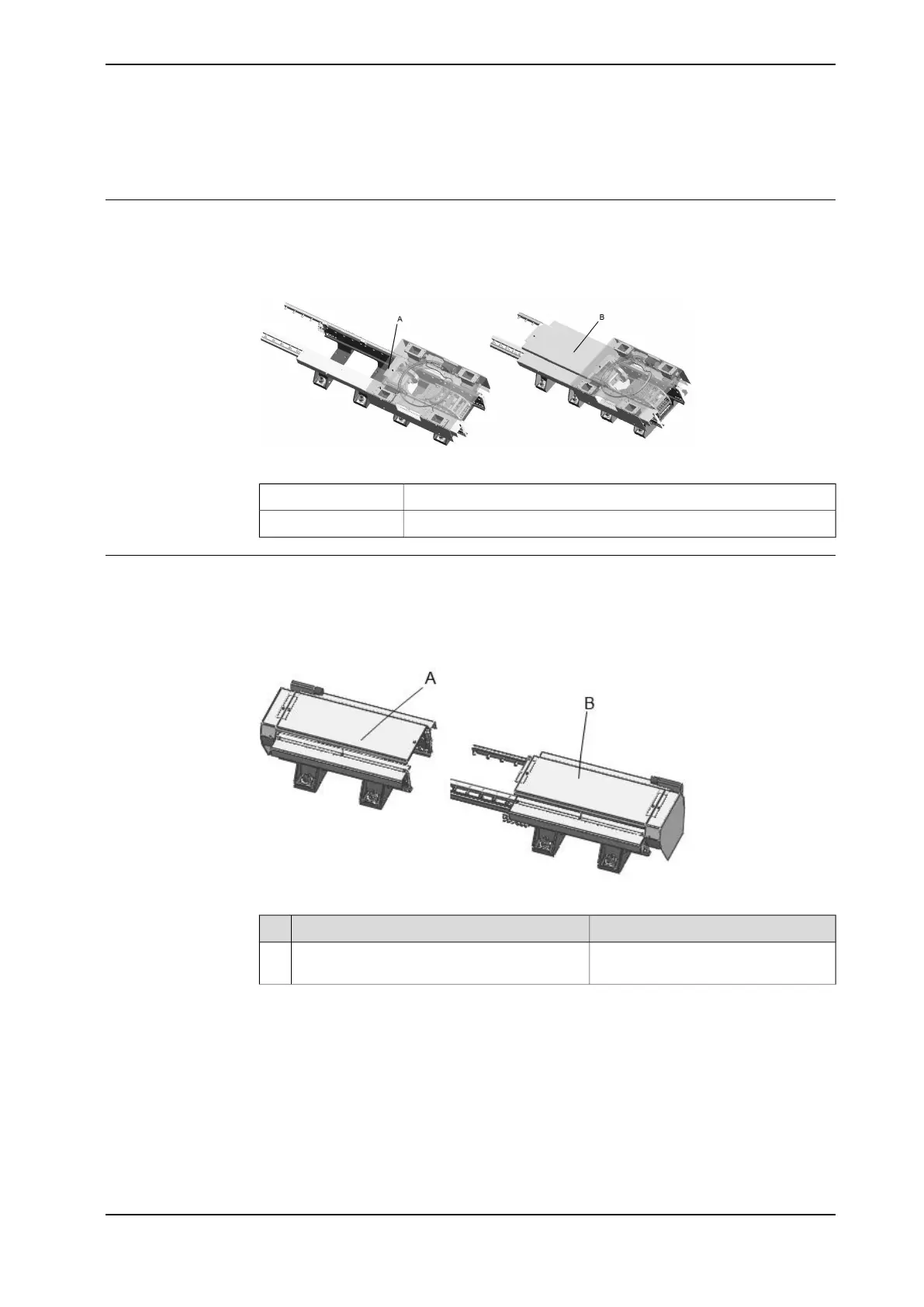

2.4.9 Connecting long tracks
Track extension
The track extension is an extension to an existing track. There are two types of
track extension: covered track extension and standard track extension. Extensions
are applied for the transfer track.
xx1400002677
Standard track extensionA
Covered track extensionB
Procedures of long track connection
Removing one end section of the track
A track motion has two end sections (A and B in the following figure). Remove one
of the end section as required.
xx1400002676
Illustration/NoteAction
Remove the top cover and rack cover of the
end section.
1
Continues on next page
Product manual - IRBT 2005 103
3HAC051130-001 Revision: F
© Copyright 2015 - 2018 ABB. All rights reserved.
2 Installation and commissioning
2.4.9 Connecting long tracks
