2.4.3 Hole configuration
Dimension
xx1400001434

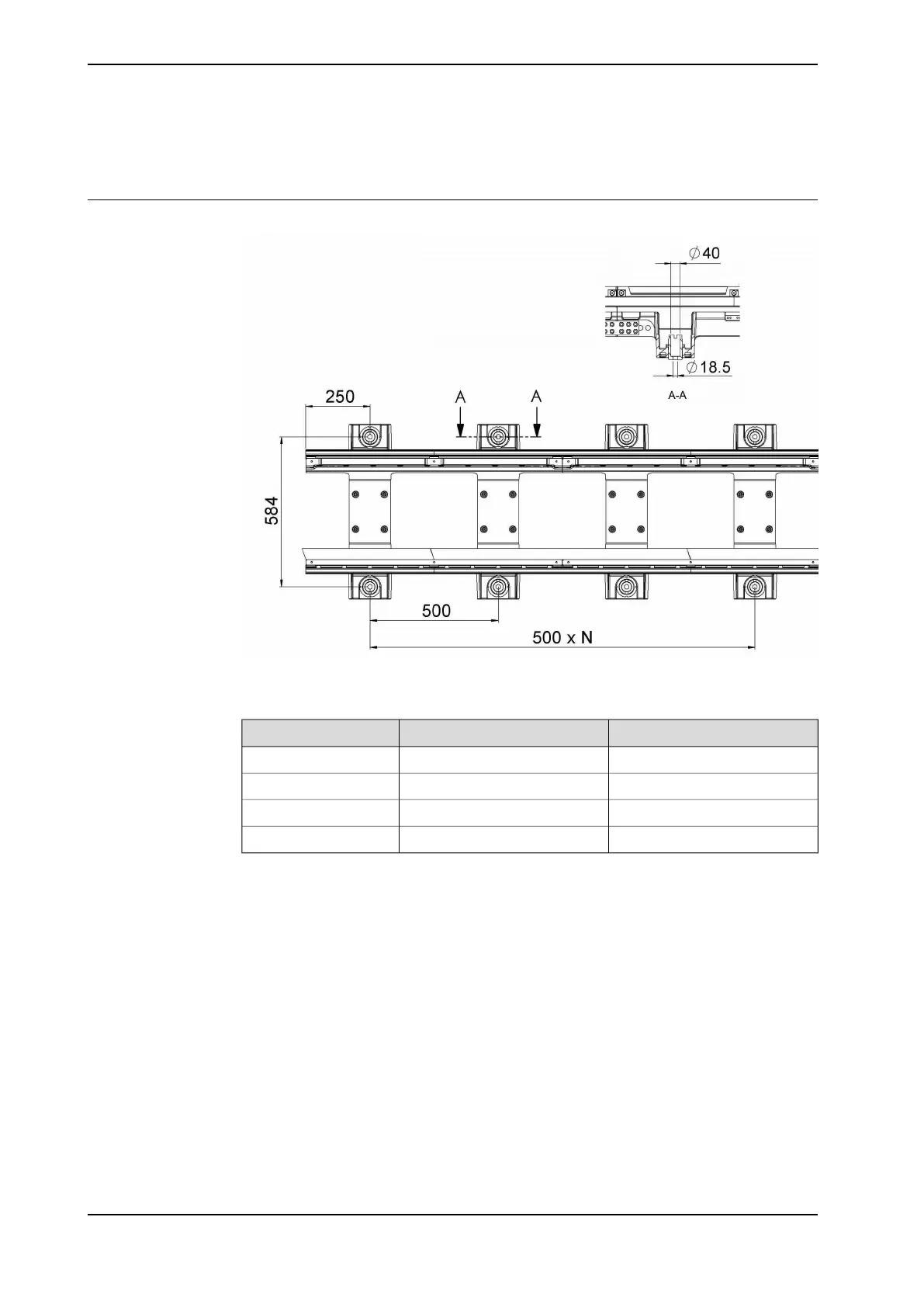

The table describes the value of N in the figure above with different travel lengths.
Quantity NTotal length of the standTravel length
44 m2.8 / 1.6 m
55 m3.8 / 2.6 m
66 m4.8 / 3.6 m
etc.
