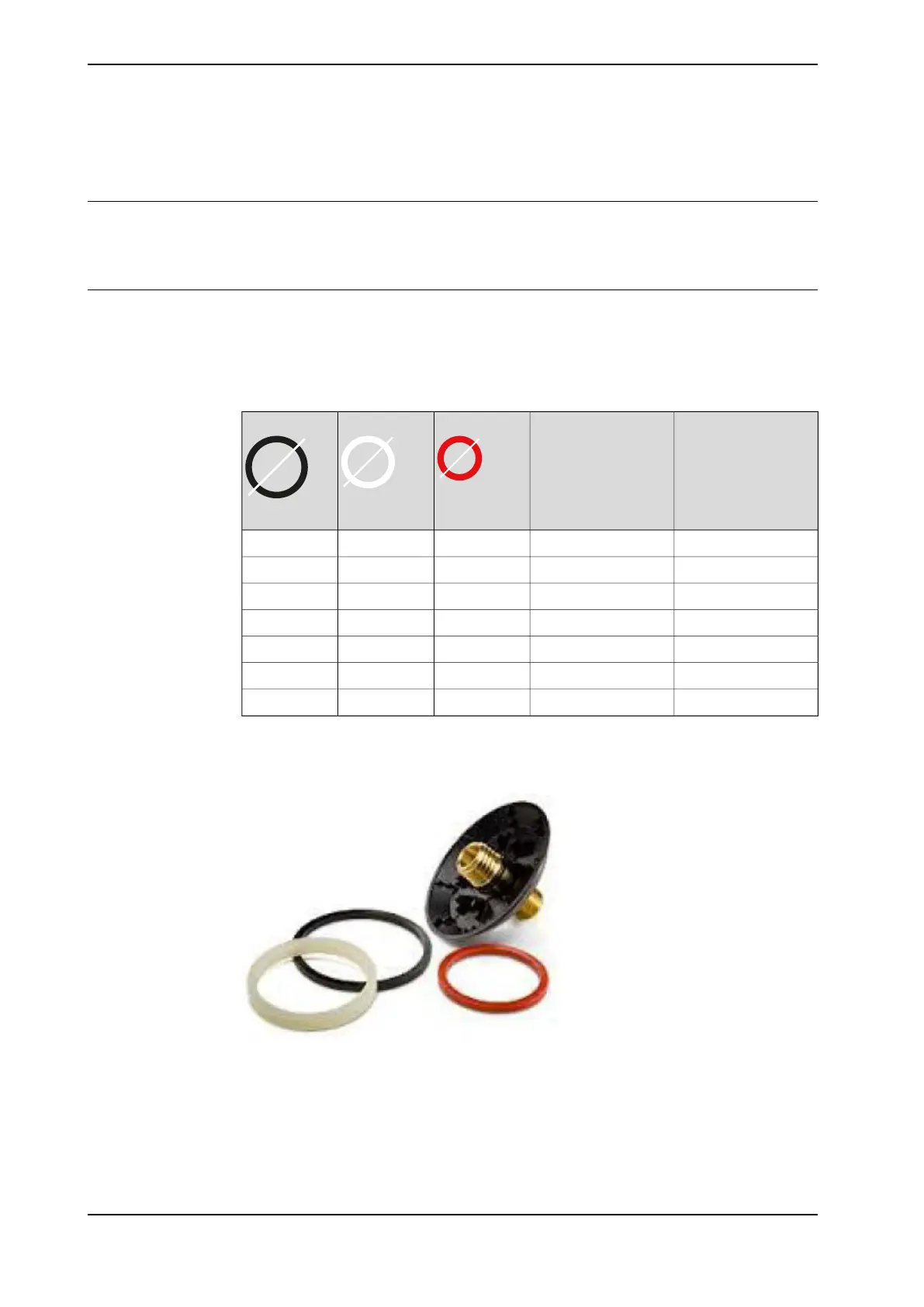

2.8.2 Configuration of grease pump MEMOLUB
®
Overview
This section is based on the MEMOLUB
®
installation instructions. It details how
to configure the grease pump MEMOLUB
®
.
Configuration
The grease pump MEMOLUB
®
is set through combination of 3 plastic rings: black
(Ø50 mm), white (Ø44 mm) and red (Ø38 mm).
The table shows the frequency of strokes and the duration of a 240 mm cartridge
at different combinations.
Duration of a 240 mm
cartridge
month(s)
Frequency
hour(s)
38 mm
xx1600001022
44 mm
xx1600001021
50 mm
xx1600001020
2448x
1224x
816xx
612x
36xx
12xx
1/21xxx
Set of rings
The figure shows the 3 rings disassembled from the grease pump MEMOLUB
®
.
xx1600001023
144 Product manual - IRBT 2005
3HAC051130-001 Revision: F
© Copyright 2015 - 2018 ABB. All rights reserved.
2 Installation and commissioning
2.8.2 Configuration of grease pump MEMOLUB
®
