4.9 Replacing the cable chain and cables
4.9.1 Replacing the cable chain

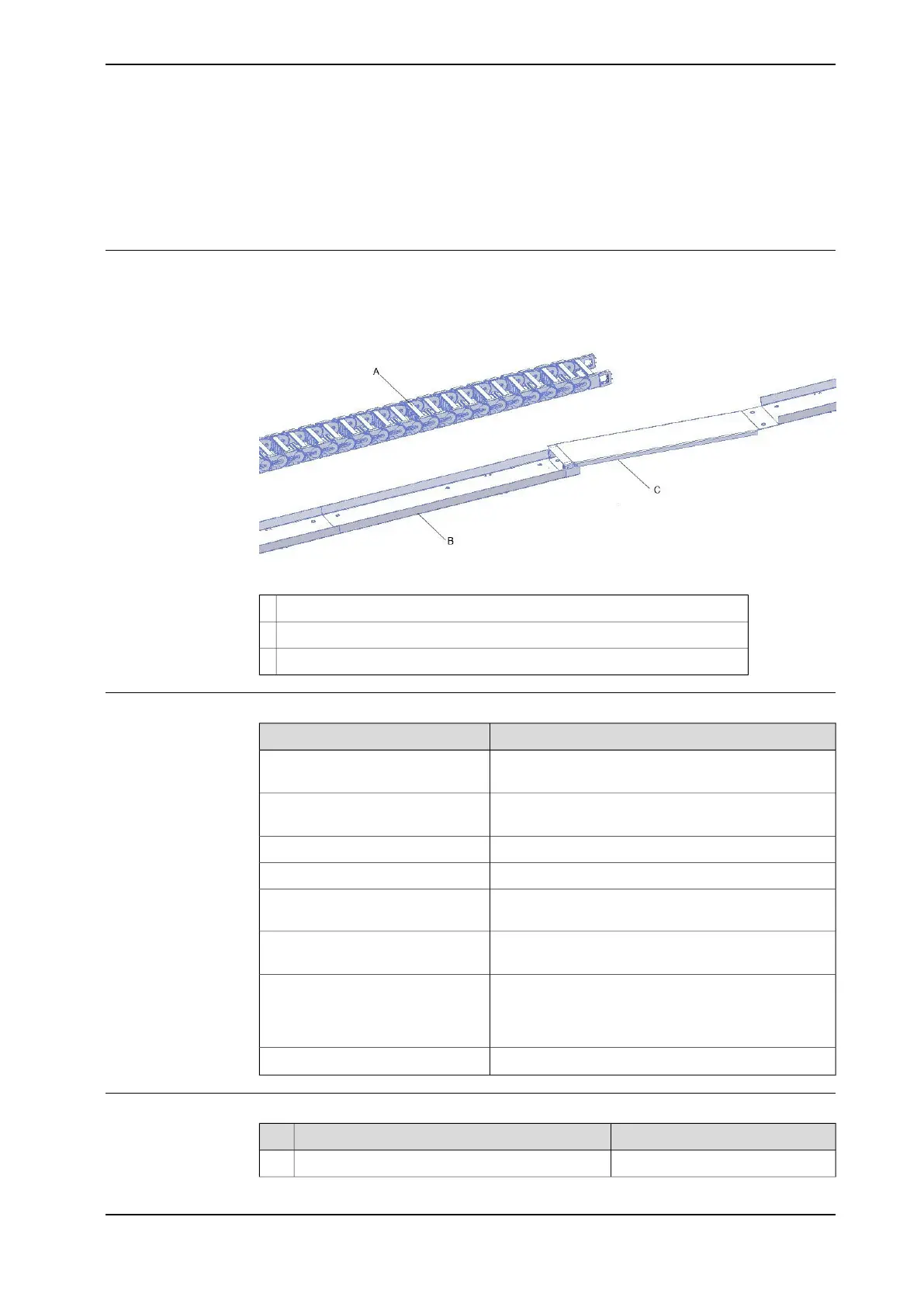

Location of the cable chain
The figure shows the cable chain and the cable tray designed for the cable chain.
xx1400000742
Cable chainA
Sheet metalB
Sloped sheet metal used when the track travel length is no less than 5 mC
Required equipment
NoteEquipment
Spare part number is specified in Spare parts on
page 283.
Cable chain
Spare part number is specified in Spare parts on
page 283.
Cable chain parts
Loctite 243Locking liquid
Replace if damaged.Plastic clips
Replace with new nuts, if removed. NYLOC nuts can
only be used once.
NYLOC nuts
Content is defined in section Standard tools on
page 276.
Standard toolkit
These procedures include references to the tools re-
quired.
Other tools and procedures may be
required. See references to these
procedures in the step-by-step in-
structions below.
See Circuit diagrams on page 285.Circuit diagram
Moving away the carriage
Illustration/NoteAction
Remove all cover plates.1
Continues on next page
Product manual - IRBT 2005 241
3HAC051130-001 Revision: F
© Copyright 2015 - 2018 ABB. All rights reserved.
4 Repair
4.9.1 Replacing the cable chain
