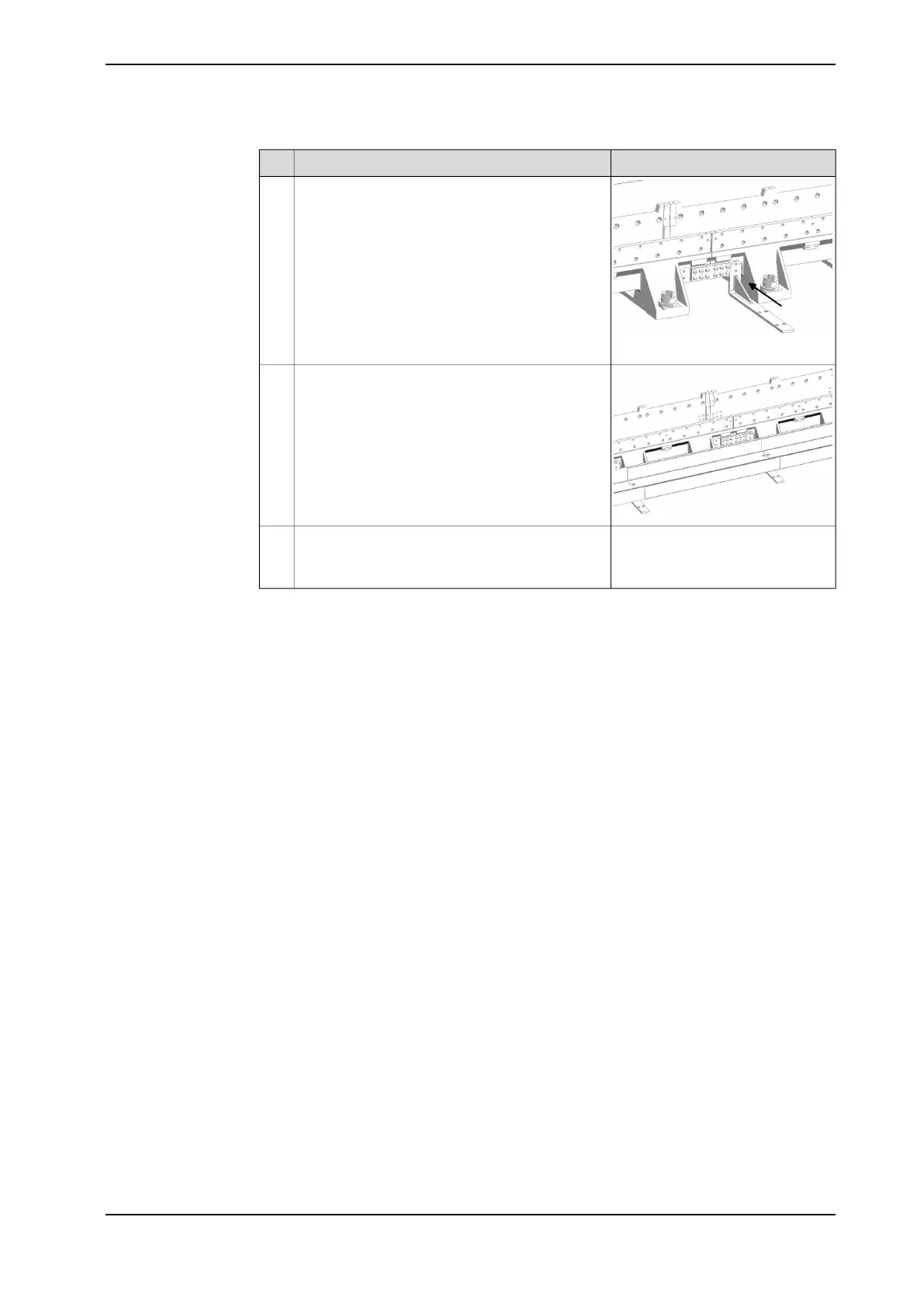

Illustration/NoteAction
xx1400001582
Fit the bottom bracket for external cable tray to
the track.
2
Place the cable tray onto the brackets.3
M6x12 Torx counters. head screw,
9ADA624-5
Fasten the external cable tray with screws.4
Tightening torque: 10 Nm
Product manual - IRBT 2005 117
3HAC051130-001 Revision: F
© Copyright 2015 - 2018 ABB. All rights reserved.
2 Installation and commissioning
2.5.4 Assembling the cable tray
Continued
