Tension Electronics PFEA111/112, User Manual

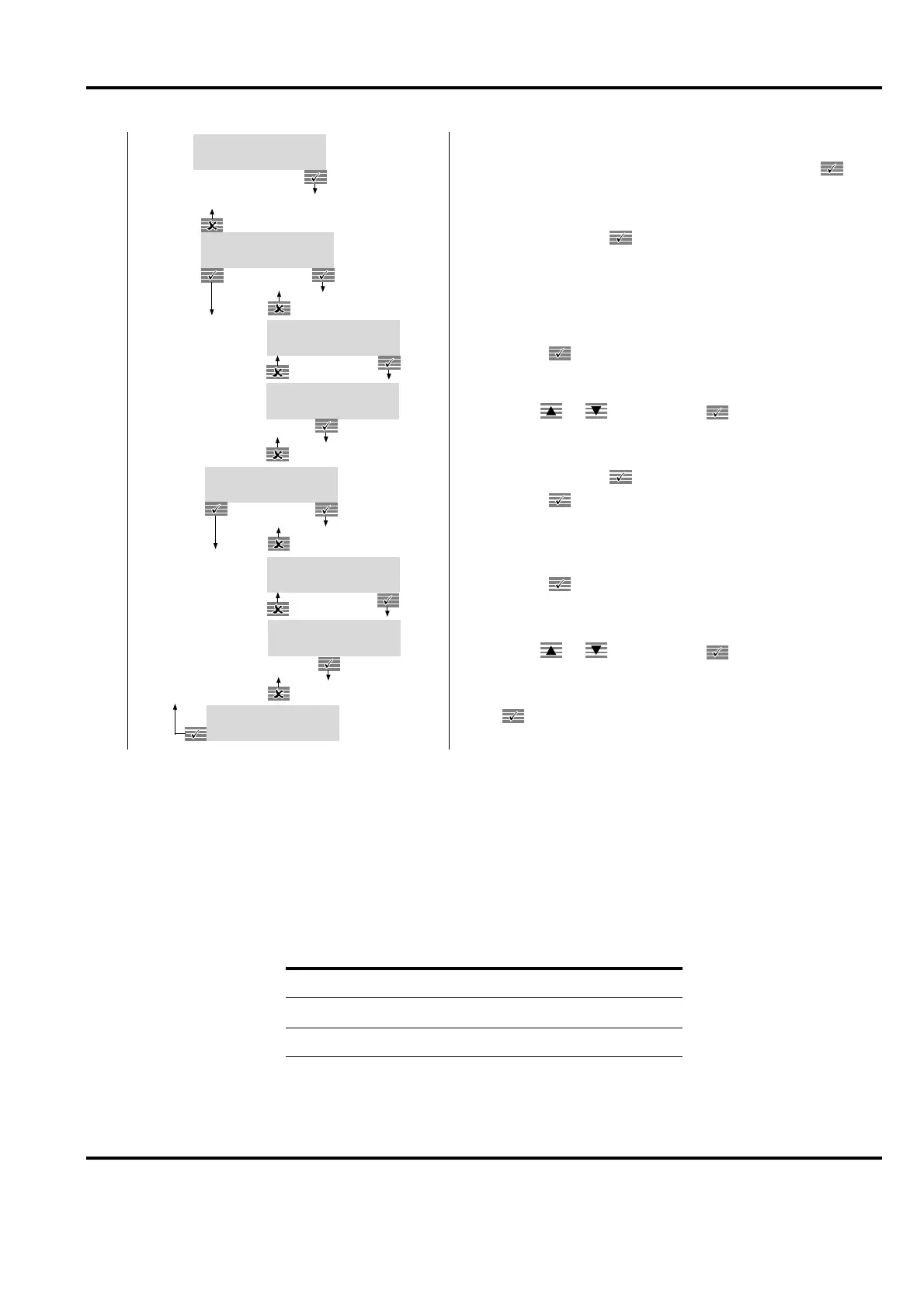

Section 3.8.1 Performing Fast Setup using Hanging Weights
3BSE029380R0101 Rev C 3-7
In the Hang Weight menu the units N/m, kN/m, kg/m, and pli may not be used. If one of these
units have been selected in the presentation menu the unit in the HangWeight menu will be
shown and entered according to Table 3-1.
9 1. Apply a known weight on the roll (see Figure 3-1).
2. Enter the value of the known weight. Confirm with .
10
Select Yes and press to set up the voltage output.
11 Enter the tension value corresponding to 10 V.
Confirm with .
12 Select filter settings (15, 30, 75, 250, 750 or 1500 ms) from
the list with or . Confirm with .
13 Select Yes and press to set up the current output.
Confirm with .
14 Enter the tension value corresponding to 20 mA.
Confirm with .
15 Select filter settings (15, 30, 75, 250, 750 or 1500 ms) from
the list with or . Confirm with .
16
Press to finish the fast setup and go to the operator
menu.
Table 3-1. Units used in the Hang Weight menu.
Selected unit in the
presentation menu
Shown and entered unit
in the Hang Weight menu
N/m N
kN/m kN
kg/m kg
pli lbs
HangWeight
[XXXXXX] N
VoltageOut?
[Yes]
Yes
No
SetTensionAt10V
[XXXXXX] N
FilterSettings
[250 ms 1.5 Hz]
CurrentOut?
[Yes]
YesNo
SetTensionAt20mA
[XXXXXX] N
FilterSettings
[250 ms 1.5 Hz]
To
WebTension
Finished
PressOk
