Tension Electronics PFEA111/112, User Manual
Section 3.12.6 Voltage Output
3BSE029380R0101 Rev C 3-19
The following parameters can be set:
• Filter settings)
See Table 3-3.
• High Tension (N, kN, kg, lbs, N/m, kN/m, kg/m, pli), (factory default = 2000 N)
• High Output, (factory default = +10 V)
• Low Tension (N, kN, kg, lbs, N/m, kN/m, kg/m, pli), (factory default = 0 N)
• Low Output, (factory default = 0 V)
• High Limit, (factory default = +11 V)
• Low Limit, (factory default = -5 V)

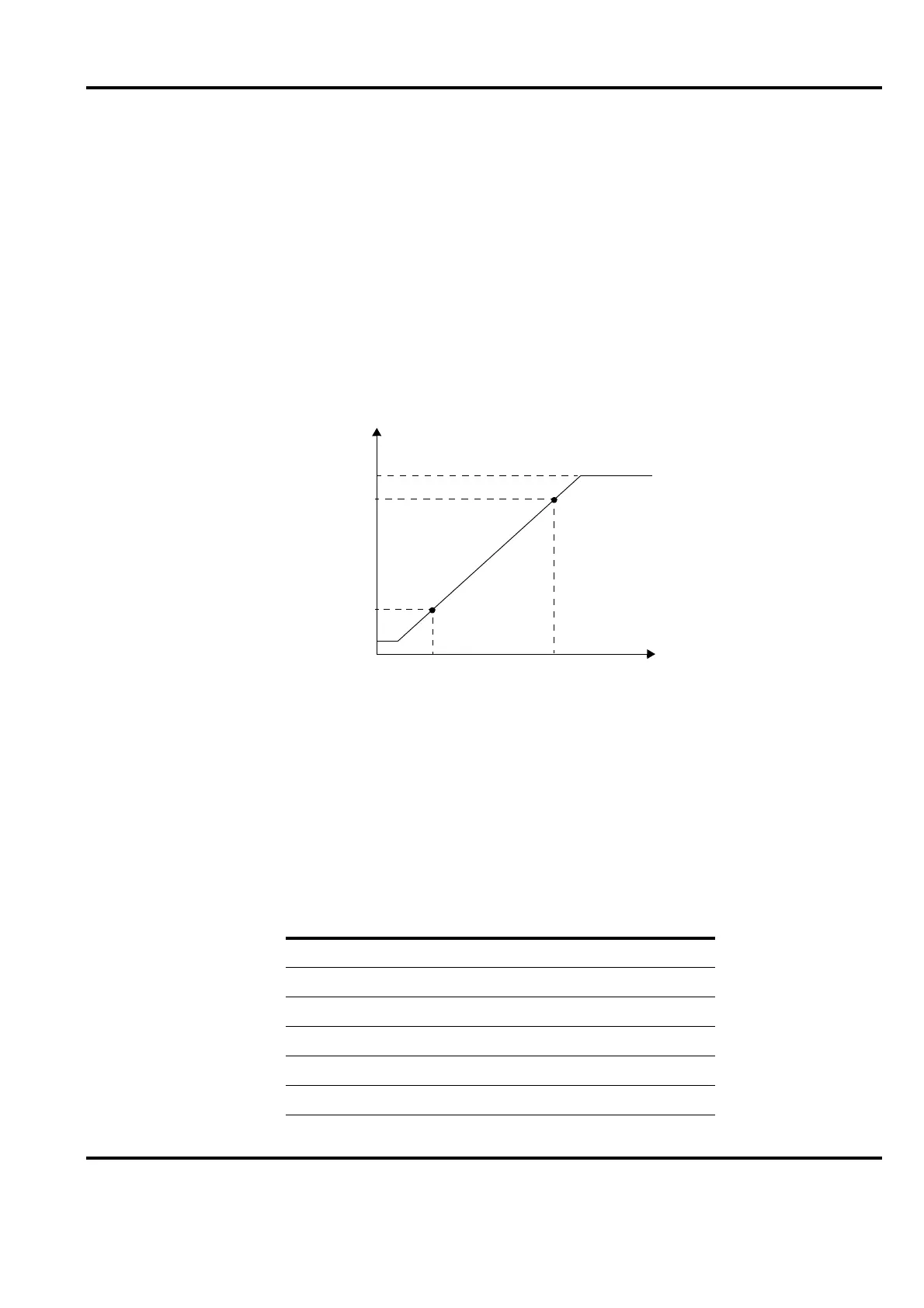

Figure 3-13. Parameter Definitions
Filtering may be used if the voltage output signal is too fast or to compensate roll imbalance.
The filters are of type linear phase, maximum flat, 20 dB/decade.
Table 3-3. Filter Settings
Step response time 0 - 90% Cut-off frequency –3dB
15 ms 35 Hz
30 ms 15 Hz
75 ms 5 Hz
250 ms 1.5 Hz
750 ms 0.5 Hz
1500 ms 0.25 Hz
Web Tension
N, kN, kg, lbs,
Voltage Output [V]
High Limit
High Output
Low Output
Low Limit
Low Tension
High Tension
N/m, kN/m, kg/m, pli
