10: Traffic Shaper
• Q-length: Size in KBytes of the shaper's queue.
• CIR: The shaping rate of green packets in Kbps (average output rate of the shaper).
• CBS: The shaping burst of green packets in Bytes (maximum output burst of the shaper).
• EIR: The shaping rate of yellow packets in Kbps (average output rate of the shaper).
• EBS: The shaping burst of yellow packets in Bytes (maximum output burst of the shaper).
Traffic shaper statistics
• Name: Unique name assigned to this shaper.
• CIR: Instantaneous rate of green packets in Mbps.
• EIR: Instantaneous rate of yellow packets in Mbps.
• Drop green: Rate of dropped green packets in Mbps.
• Drop yellow: Rate of dropped yellow packets in Mbps.

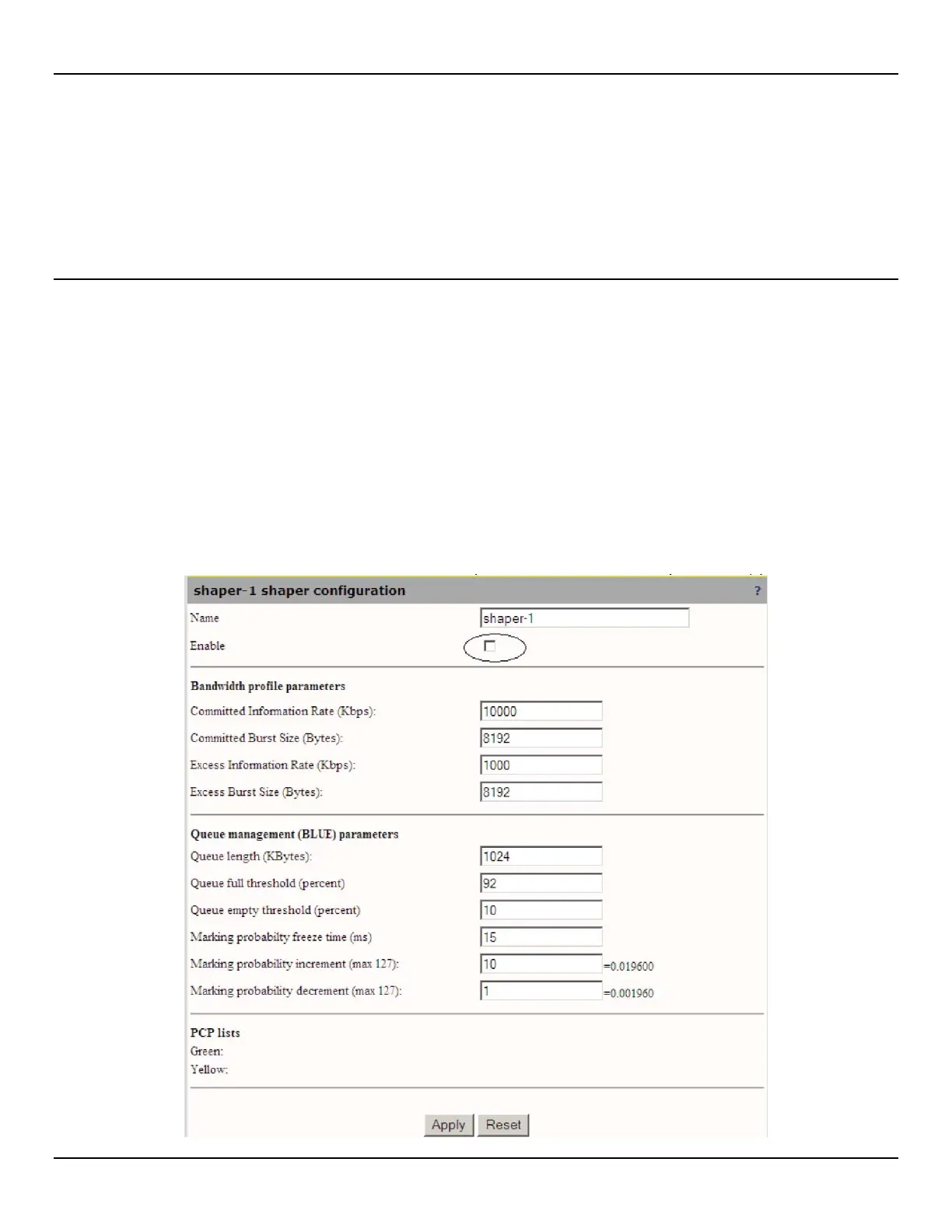

To configure a traffic shaper, do the following:
Click on shaper-1
Enter the desired values for the shaper then enable the shaper and Apply.
