6: Alarms

Alarm status

The Alarm > Status page presents a summary of all alarms.

For a description of each field see

Customizing an alarm on page 122.

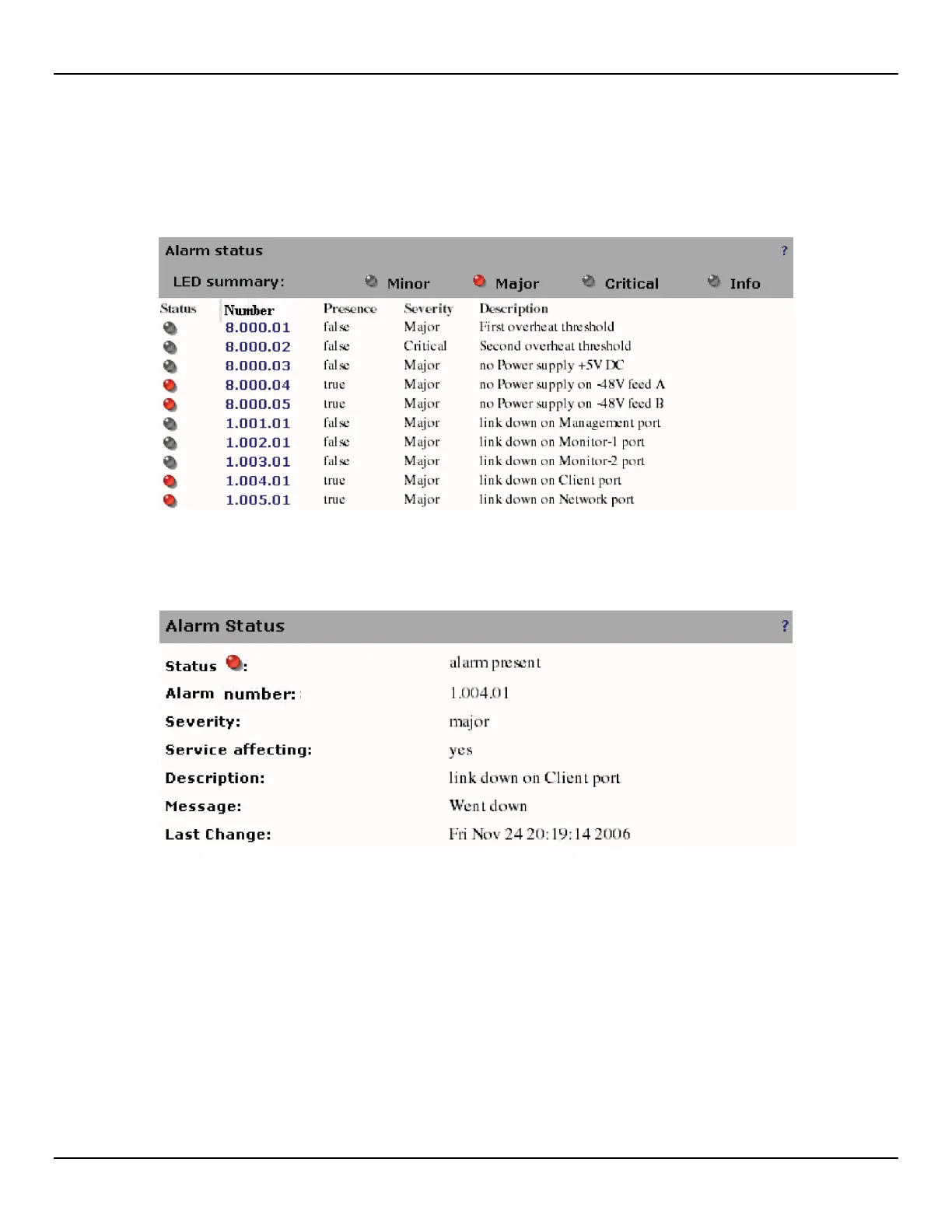

To view detailed information on an alarm click its Number. For example:
