10: Traffic Shaper

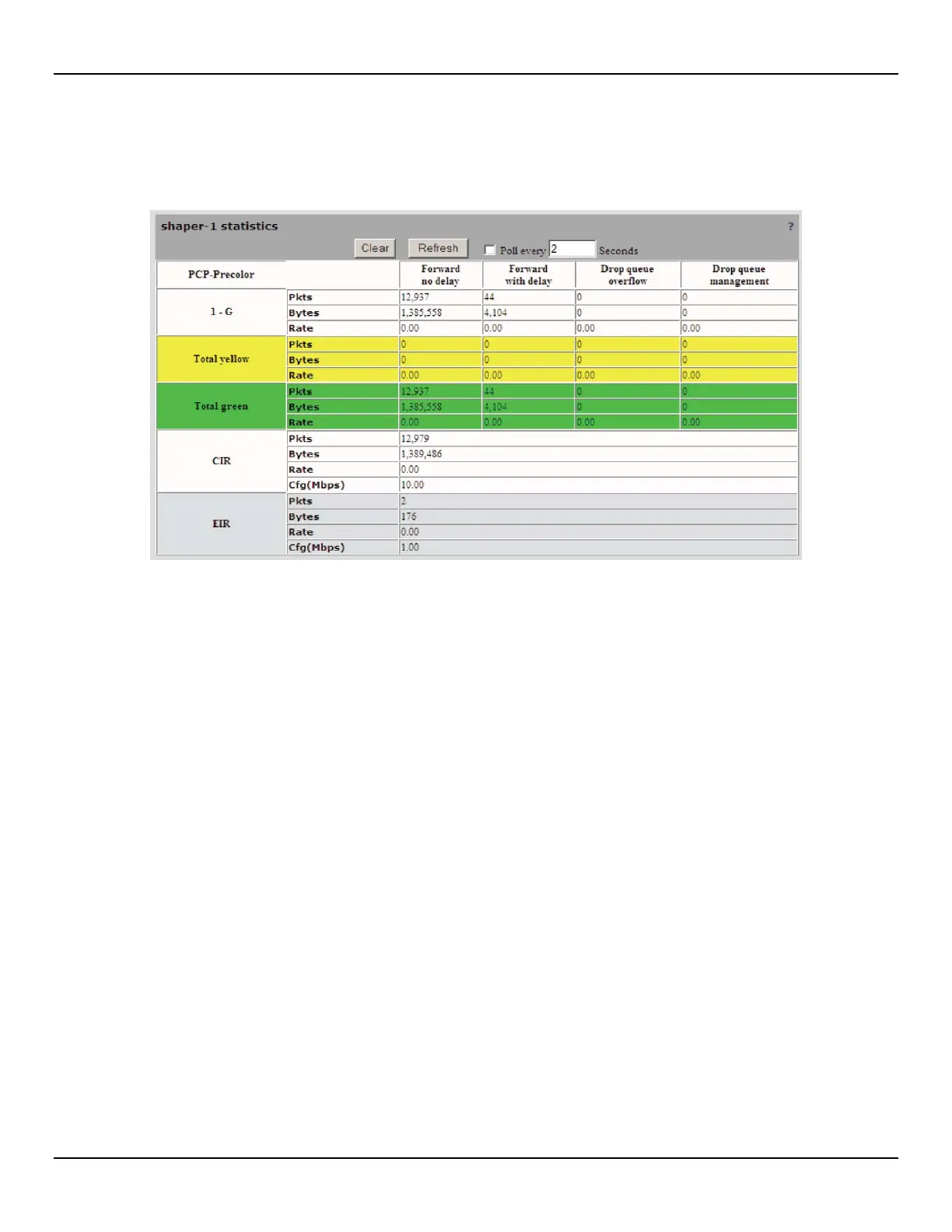

Traffic shaper statistics
• PCP-Precolor: This is the list of all PCPs and their precolor that are currently mapped to this shaper instance.
• Forward no delay: Total number of packets/bytes and rate forwarded by this shaper without any delay.
• Forward with delay: Total number of delayed (enqueued) packets/bytes and rate forwarded by this shaper
instance.
• Drop queue overflow: Total number of packets/bytes and rate dropped due to the shaper's queue overflow.
• Drop queue management (BLUE): Total number of packets/bytes and rate dropped by the queue management
algorithm (BLUE).
• Total yellow: This is the total number of yellow packets/bytes and rate forwarded by this shaper.
• Total green: This is the total number of green packets/bytes and rate forwarded by this shaper.
• CIR: Total number of packets/bytes and rate forwarded by this shaper using the CIR bucket. Note that the Cfg
value is the CIR configured by the user expressed in Mbps. For the real-time shaper, this value is only shown
when the port's global CIR is enabled.
• EIR: (Not available in the real-time shaper) Total number of packets/bytes and rate forwarded by this shaper
using the EIR bucket. Note that the Cfg value is the EIR configured by the user expressed in Mbps.
