2: Hardware Installation

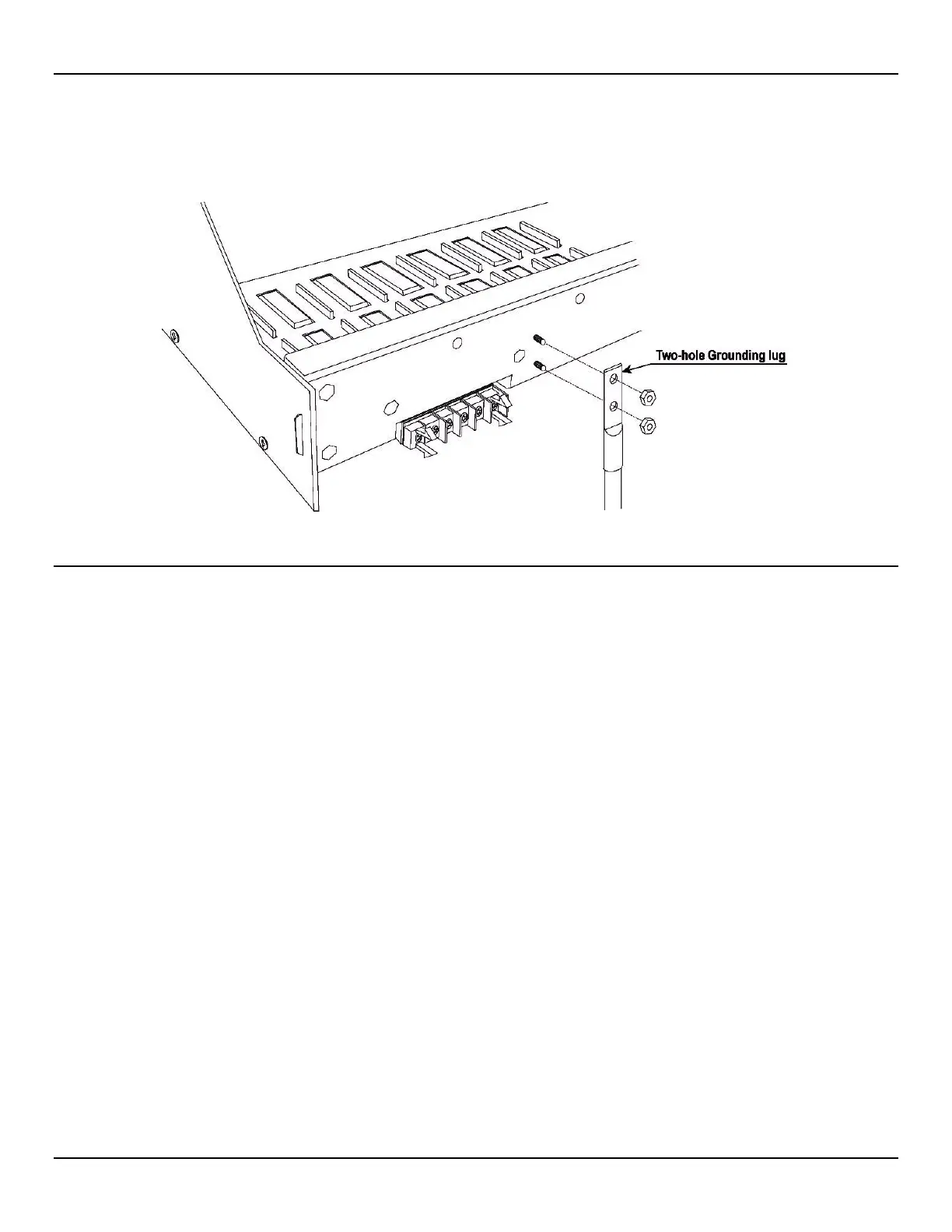

5. Use a small wrench to tighten the bolts around the two grounding screws to secure the two-hole grounding lug to
the back of the EtherSHELF
6. Connect the other end of the wire to a grounding point on the rack.
Dimensions
The EtherSHELF is a 4U chassis for 19 inch racks with available side extenders for 23 inch racks. It holds 12 EtherNIDs
all individually fused that are powered by 2 x 48V power feeds.
• Height = 7 inches
• Width = 19 inches
• Depth = 7 inches
