3: Management & Configuration
Aggregator 2x1
When in Aggregator4x1 mode, all four Client port’s traffic (4x100Mbps) will be forwarded out the Network port (1Gbps).
When in Aggregator2x1 mode, both Client port’s traffic (2x1Gbps) will be forwarded out the Network port (1Gbps) with
equal priority. Traffic Policies will need to be configured on the Network port in order to have the incoming traffic

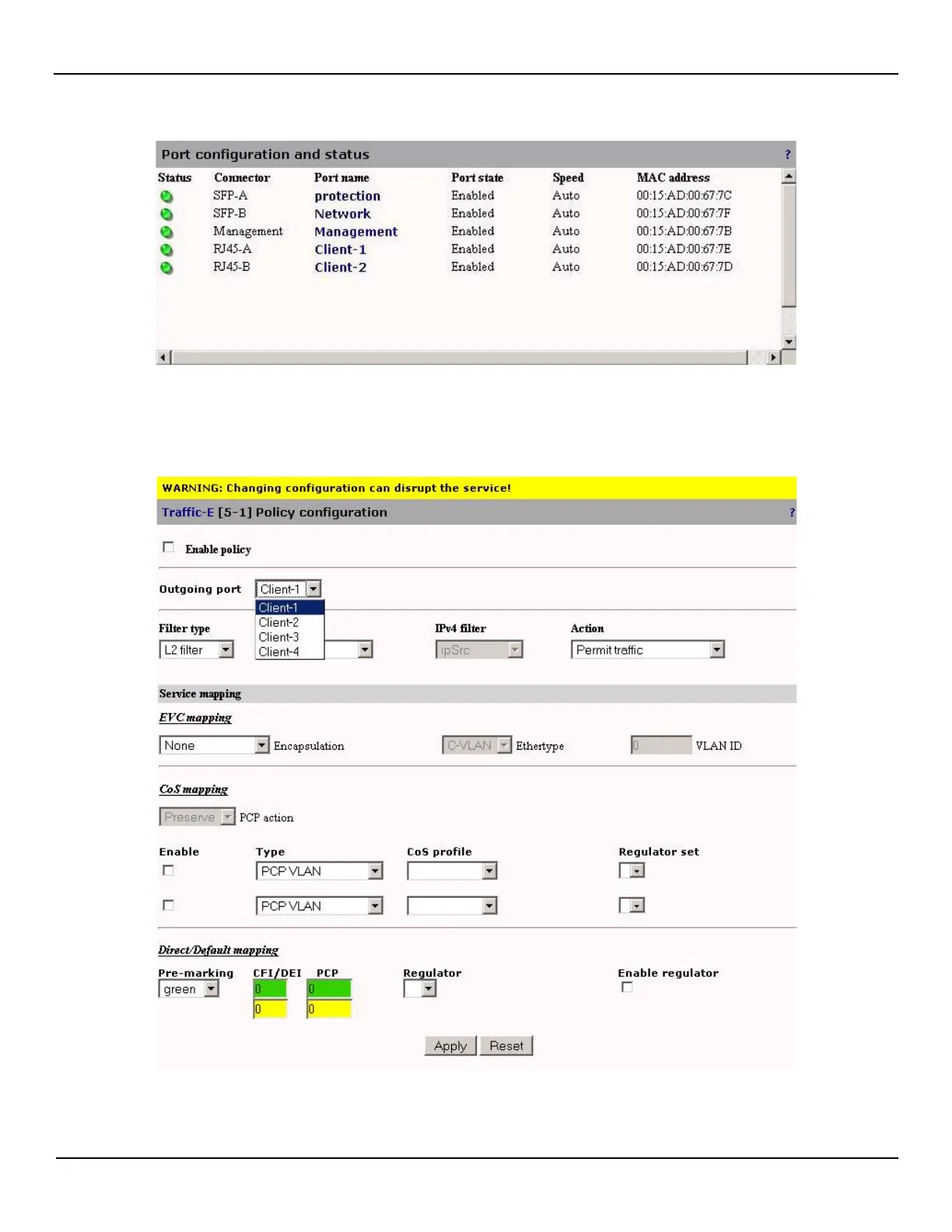

forwarded out the proper Client port. The following Policies page shows the new field added for the Network Traffic, when
in aggregator mode, in order to be able to specify the outgoing port based on the traffic filter.
