4: Port configuration

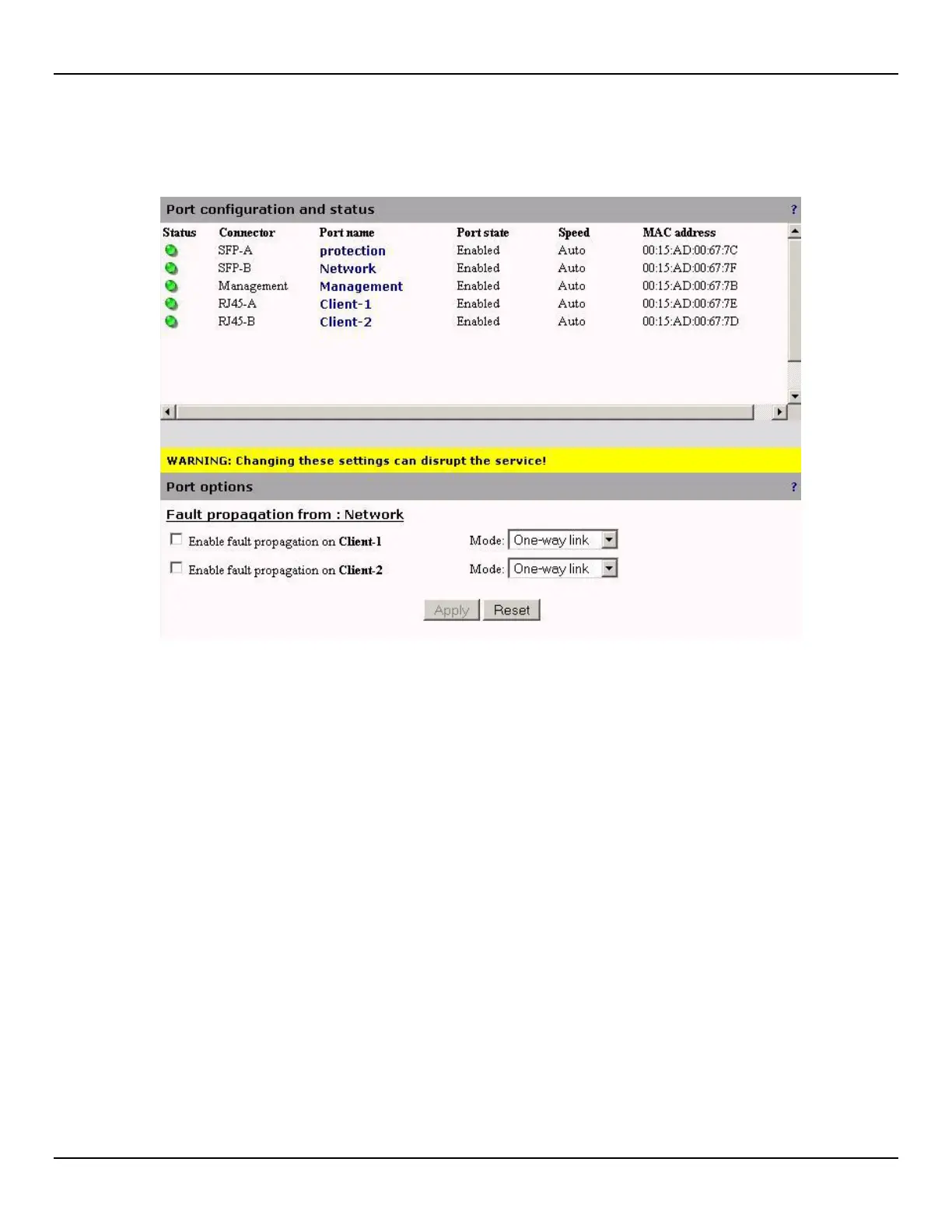

• You will see the following page on a MetroNID TE / TE-S when in Aggregator2x1 mode:

NOTE: On a TE-S the ports will be SFP-A, SFP-B, SFP-C, SFP-D
