AGFA DR 400 - Page 39

1.
X-ray tube
2.
Focal spot label [—]
3.
Significant zone of occupancy.
Minimum area 60x60 cm.
Minimum height above the floor 200 cm.
4.
Dose meter
5.
DR Detector or cassette
6.
Significant zone of occupancy at the left side of the radiographic table
7.
Significant zone of occupancy in front of the radiographic table
8.
Significant zone of occupancy at the right side of the radiographic table
Figure 15: Significant zones of occupancy at the radiographic table
Related Links
Radiation Protection on page 35
Scattered radiation (general radiography) on page 41

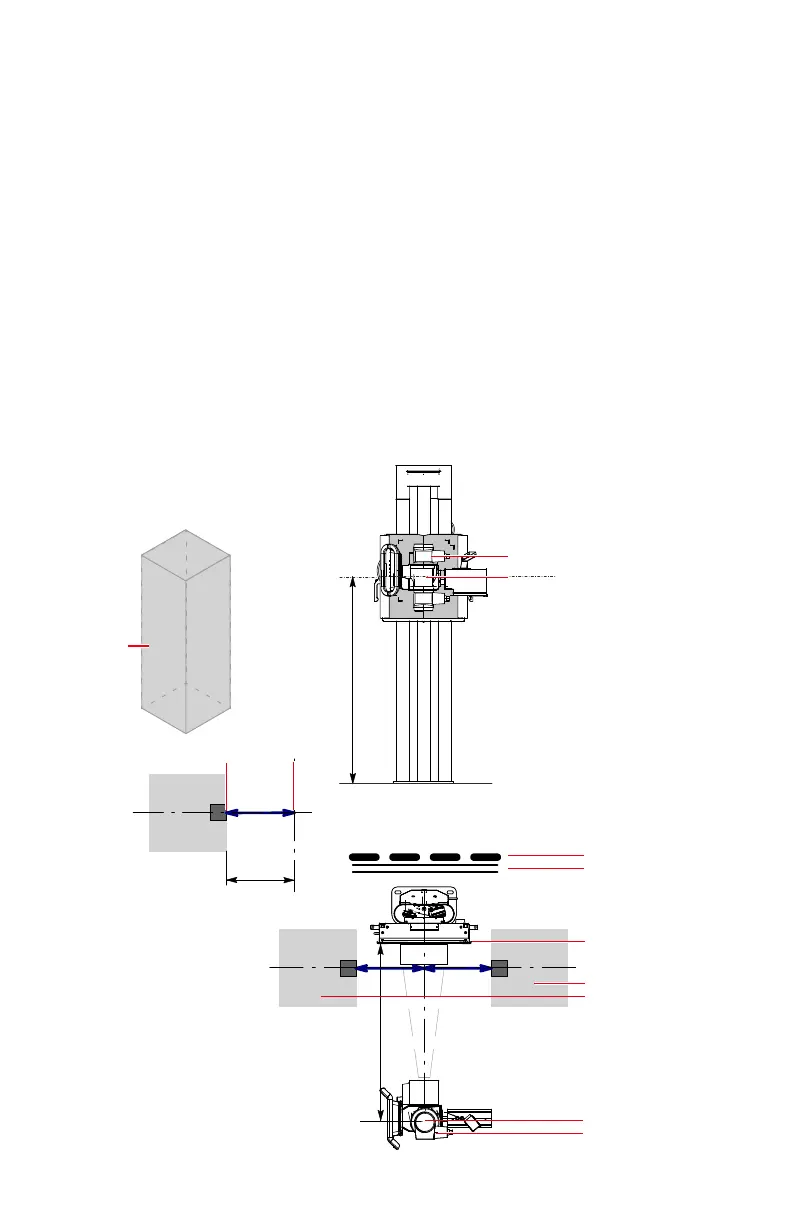

Significant zones of occupancy at the radiographic wall stand
140 cm
SID115 cm
Phantom
S1
S2
S
S
50 cm
1
2
3
4
2
5
6
7
2
1
8
9
DR 400 | Introduction to DR 400 | 39
3231E EN 20210708 1530
