Agilent Technologies 6890 Series

310 Flame Ionization Detector (FID)
Replacement procedures
6 of 24
Jun 2001
Detectors
Agilent 6890 Gas Chromatograph Service Manual
7. Follow the heater/sensor cables back to their connector to the right of
the detector interface card and disconnect them.

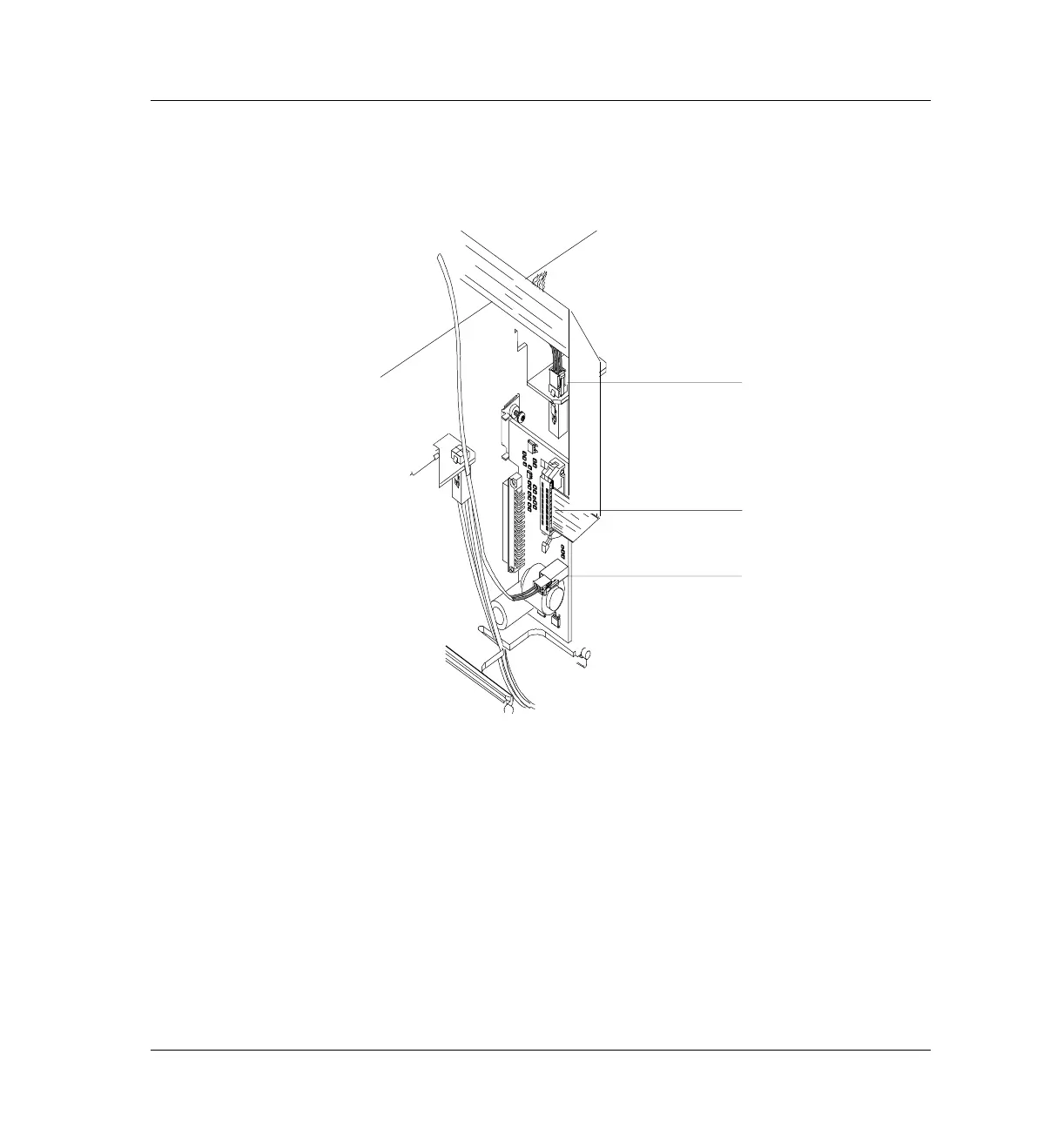

Figure 310-5 Location of FID connectors
Heater/sensor cable
connector
Electrometer ribbon
cable connector
Ignitor cable connector
