Agilent 6890 Gas Chromatograph Service Manual
Flame Ionization Detector (FID) 310
Replacement procedures
8. Loosen the four captive Torx T-20 screws from the top of the detector
pallet and remove the detector from the instrument.

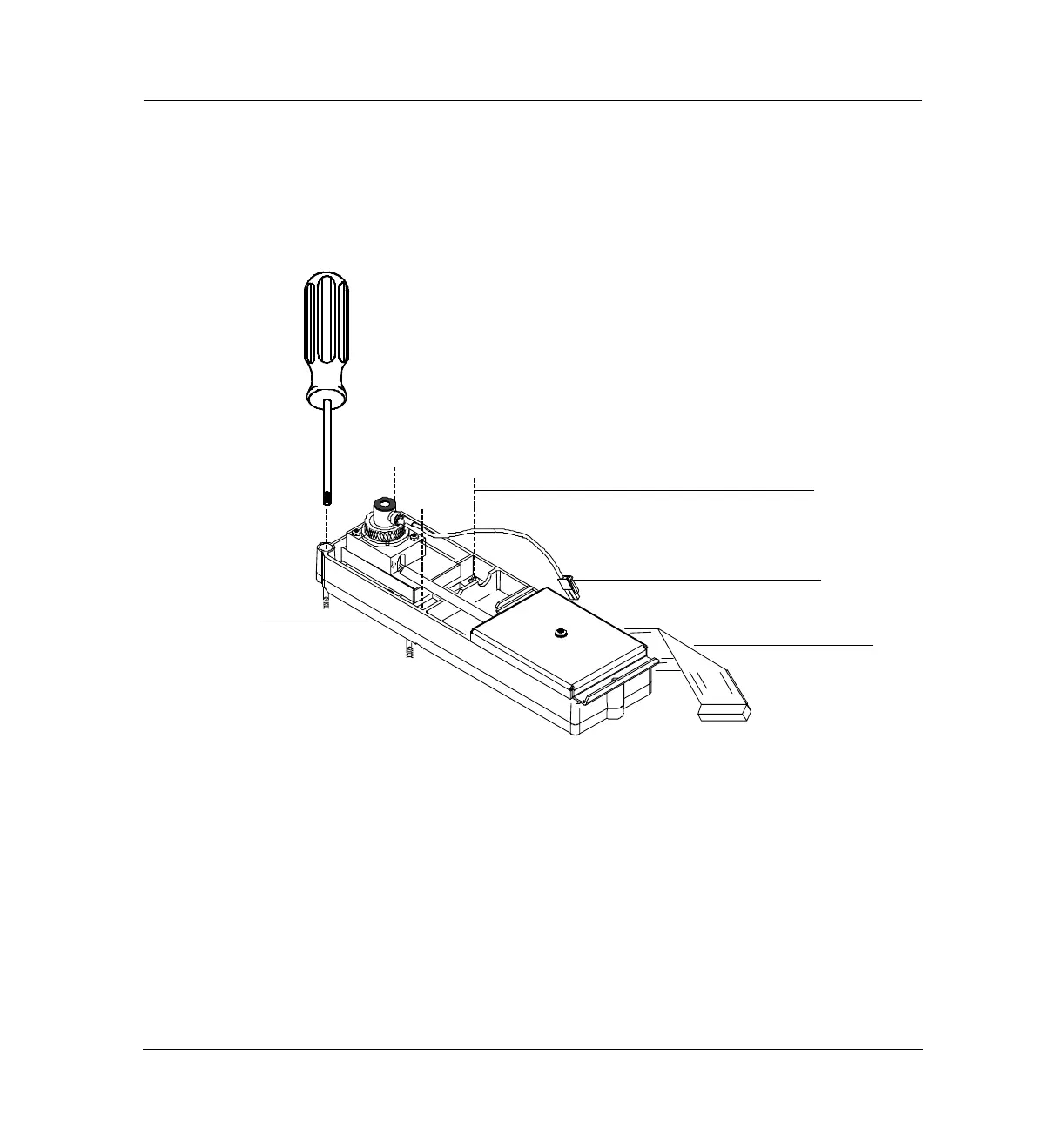

Figure 310-6 Removing the detector
Four captive screws
Ignitor cable
Electrometer ribbon
cable
Detector pallet
