Inlets
Agilent 6890 Gas Chromatograph Service Manual
Cool On-Column Inlet 230
Replacement procedures

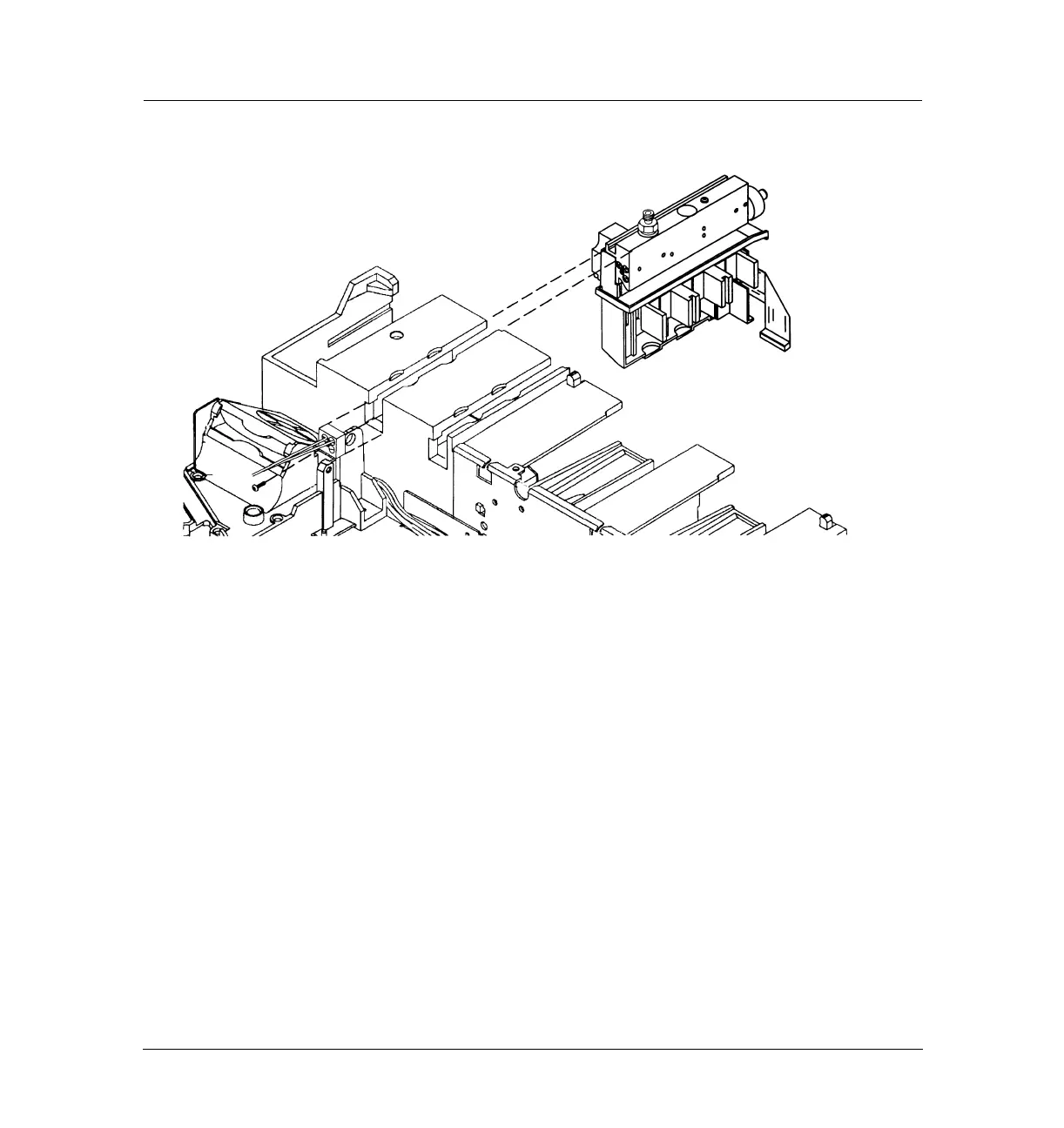

Figure 230-3 Disconnecting the inlet plumbing block (EPC inlets)
5. Use a Torx T-20 screwdriver to loosen the three captive screws that attach
the inlet weldment to the top of the inlet carrier.
