Agilent Technologies 6890 Series - The Column Oven

230 Cool On-Column Inlet
Replacement procedures
6 of 20
Jun 2001
Inlets
Agilent 6890 Gas Chromatograph Service Manual

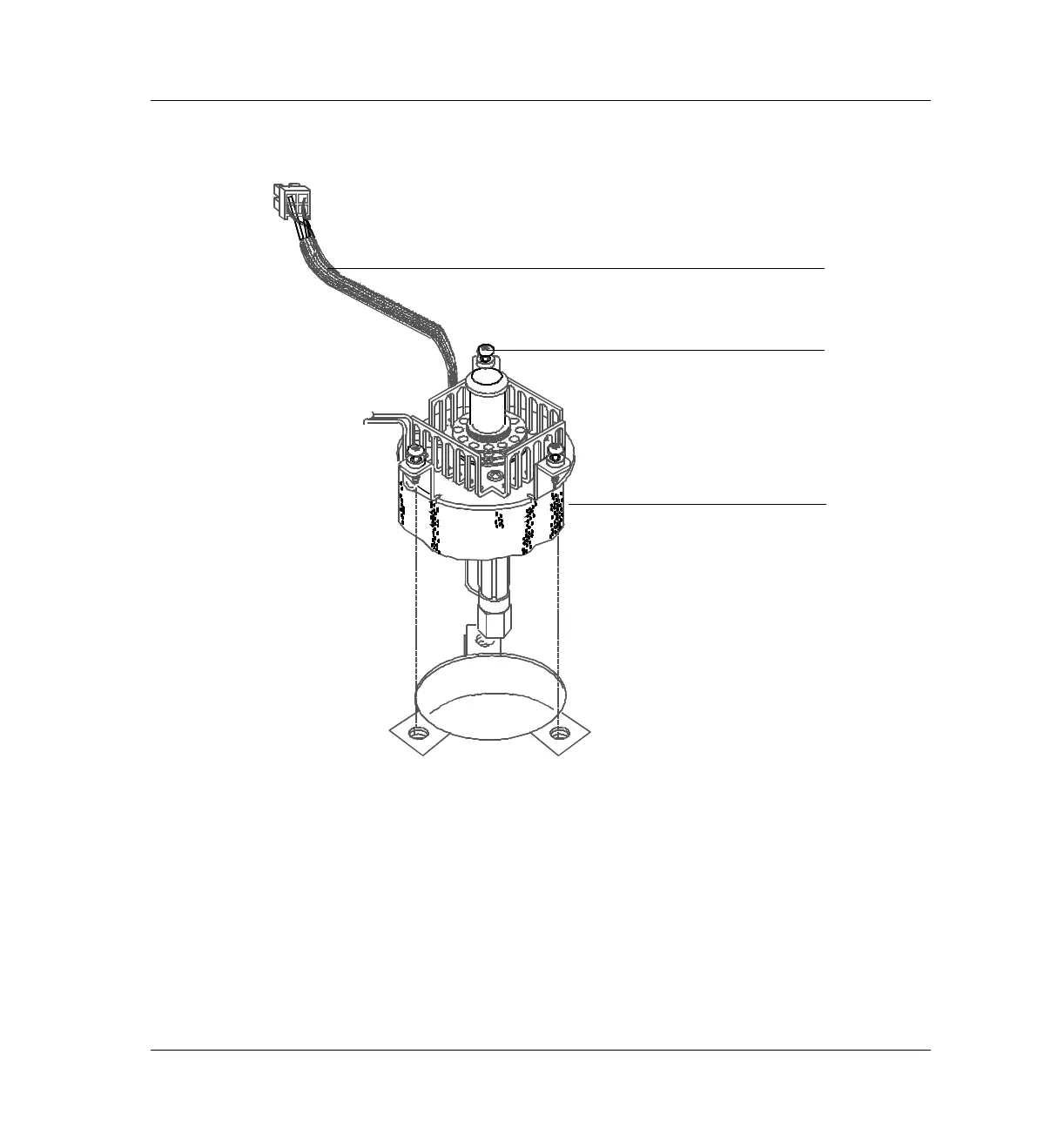

Figure 230-4 Removing the inlet from the top of the GC
6. Slide the inlet up out of the inlet carrier. If necessary, you can also slide
the insulation sleeve off of the bottom of the inlet.
7. Reinstallation is the reverse of removal.
Heater/sensor assembly
Captive screw
Insulation
