Agilent 7820 GC Service
101
If you are not replacing the transfer line, skip to the section
Rebuilding the optics assembly ( 101). If you are replacing the
transfer line, continue with the next section.

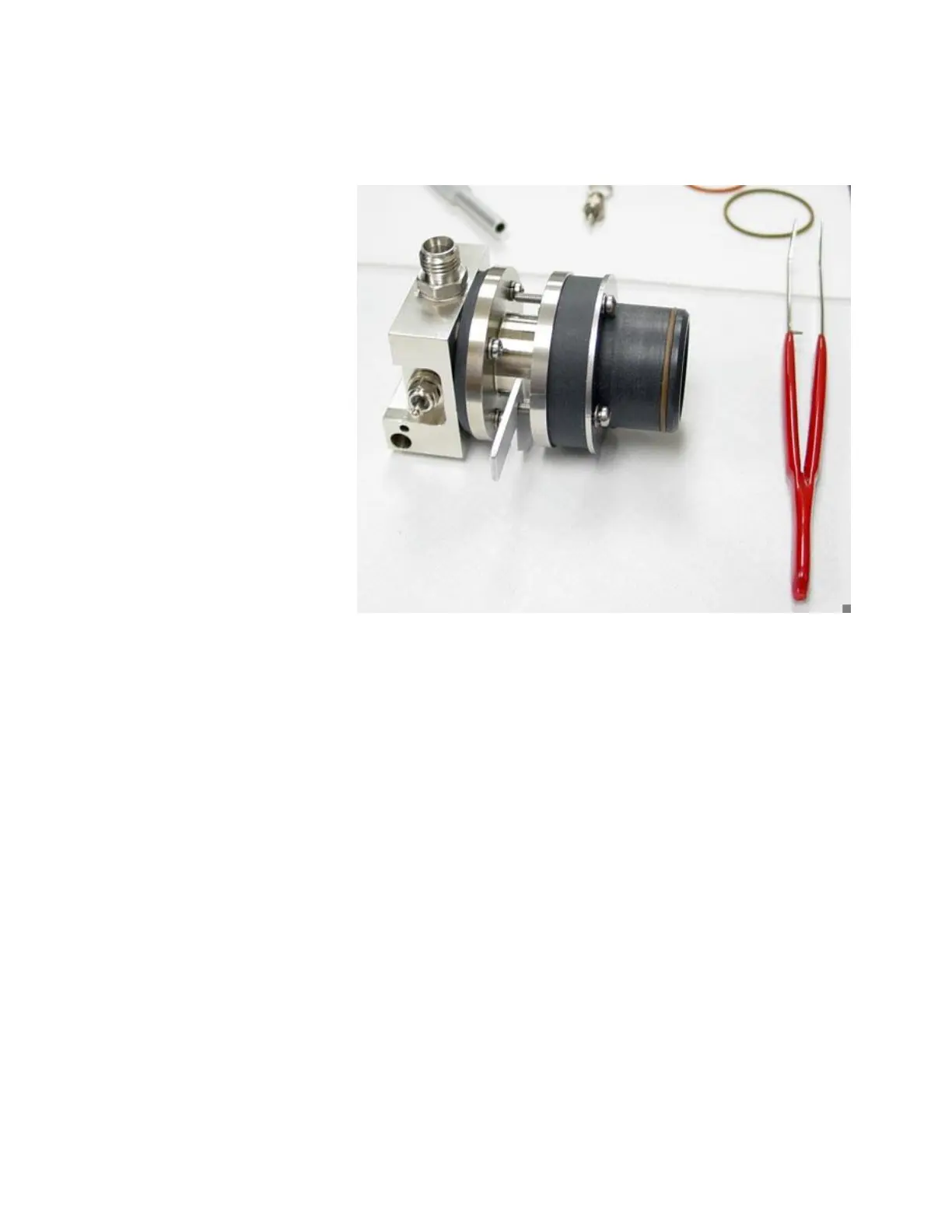

Rebuilding the FPD optics assembly
Use lint-free gloves when handling the optics assembly and
O-ring seal.
1 Completely loosen the 4 T-10 screws from the clamp and
coupling.
