Agilent Technologies 7820A Service Manual

Agilent 7820 GC Service
161
 GasType: This line indicates the EPC module. In this case, it
is plugged into the 4-wire connector labelled EPC6 and is an
AUX EPC module for a PCM.
 [Heater]: There are no heaters configured in this example.
However, you can associate a PCM with a front or back inlet
heater.
CONFIGURE PCM A
Install EPC2
Htr = NONE
Install EPC2
Htr = FINLET
Install EPC2
Htr = BINLET
Heater assignments

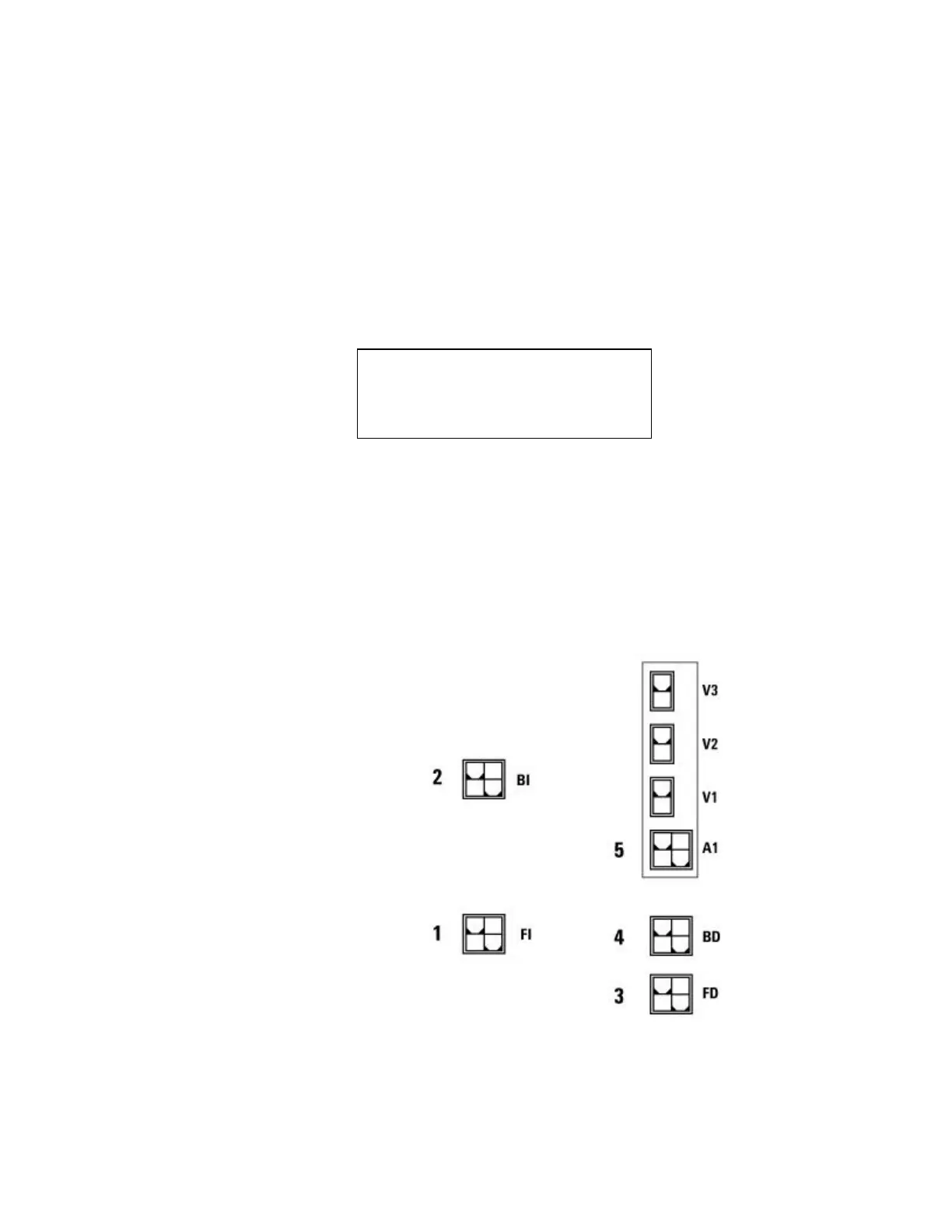

There are 4 standard connection for heaters and sensors. With a
valve bracket and harness, you add 1 more for a total of 5. The
following picture and table describe the harness labels and
typical uses.
