Agilent Technologies 7820A Service Manual

Agilent 7820 GC Service
287

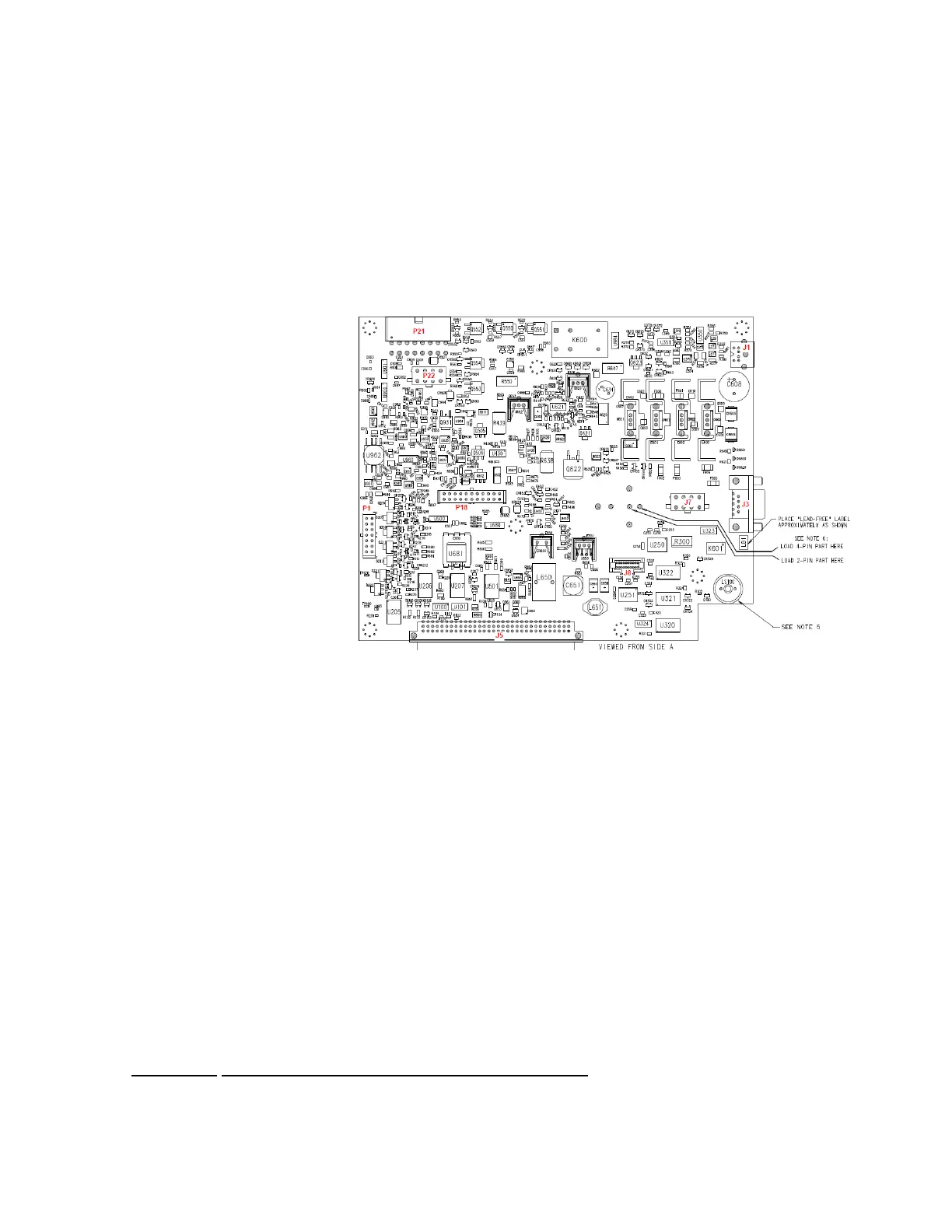

Analog and power board
Part number G4350-61150.
Connecto
r
Function
See also
J1
SIG 1. Analog output for signal 1.
Analog signal outputs (
178)
J3
REMOTE. Synchronize start/stop functions
for up to 10 devices.
Remote Start/Stop ( 172)
J5
96-pin data connection to analog and
power board.
J7
Receive power from transformer
secondary.
Main transformer ( 394)
J8
Ribbon cable to automatic liquid sampler
board.
RS-232 cable, ALS
controller
P1
Supply power to the Communication
harness.
Communication harness
P18
Connects to the Motor Harness and AC
Control cable.
Motor Harness & AC Control
Assembly
P21
Connects to Inlet/Detector harness.
Inlet/Detector harness
P22
Connects to the Auxiliary Zone/Valve Box
Harness.
Auxiliary zone/Valve box
harness
