Agilent Technologies 7820A Service Manual

Agilent 7820 GC Service
285

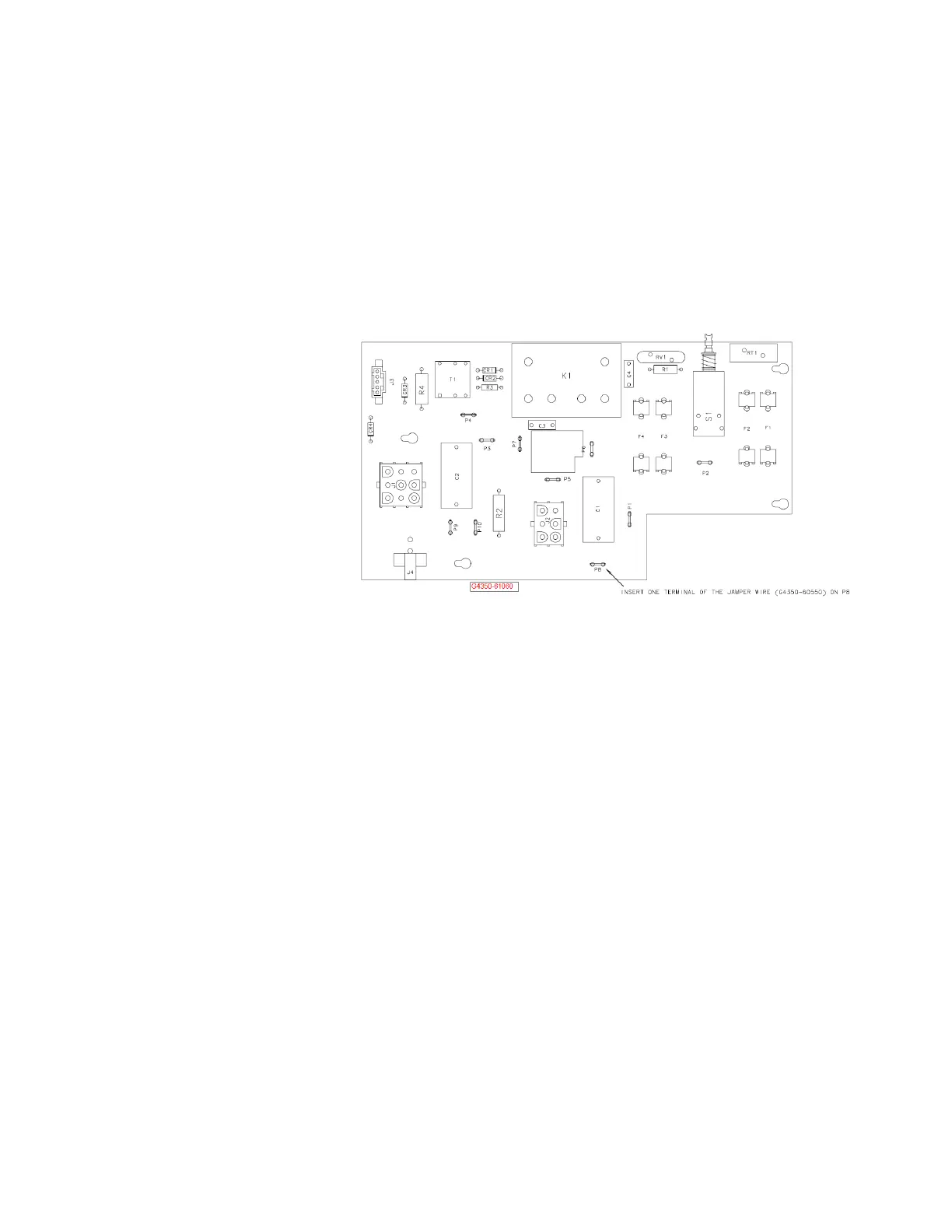

AC power board
100/120 V
Part number G4350-61060
Connector
Function
J1
Supplies power to transformer primary
windings.
J2
Oven fan motor
J3
Oven control from logic board
J4
MTC
P1 and P2
Supply line power to the AC board.
P3 and P4
Supply power to the oven heater.
P5, P6, and
P7
These three connectors take jumpers to the
oven triac. Each jumper connects to the
nearest connector on the triac, which must
be properly oriented.
P8 and P9 or
P10
These take terminals of the Jumper wire for
power configuration
