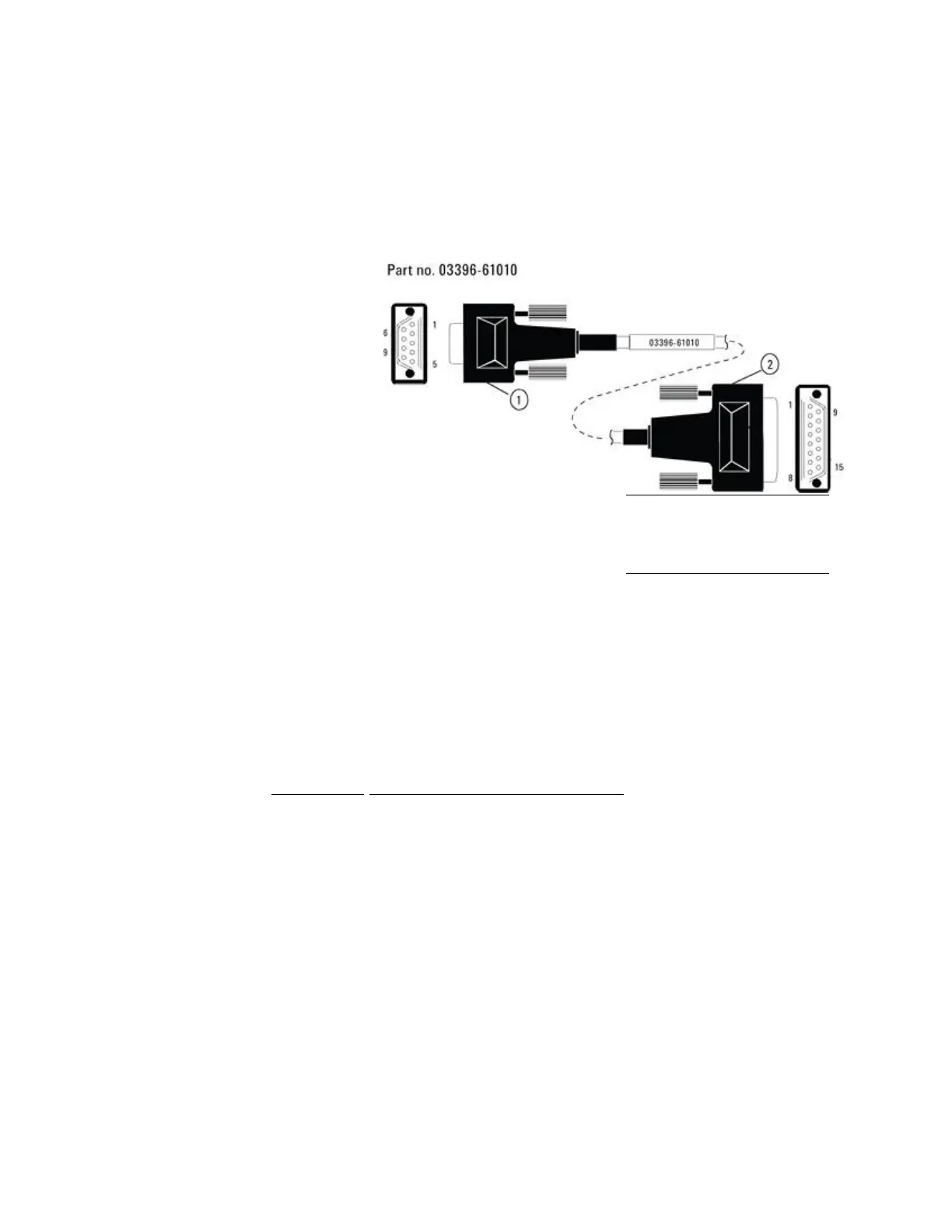

Cable pinouts, GC to 3395B/3396C
Integrator
Connector
1
9 pin
(male)
Signal name
Connector 2
15 pin (male)
1
GND
9 — Ground
2
Prepare
No connection
3
Start
3 — Start in
4
Start relay
No connection
5
Start relay
No connection
6
No connection
No connection
7
Ready
14 — Ready out
8
Stop
4 — STOP2 In
9
No connection
No connection
Automatic sampler for GC
There are two connectors, ALS Port Front and ALS Port Back,
for the 7693A Injector (G4513A). The injector should be installed
in the connector for the inlet in use, however, the GC should
automatically determine where the injector is installed regardless
of the connector used.
The cable part number is: G4514-60610
