192

Agilent 7820 GC Service

connection

Black

MS (3)

ACOM

Red

MS (1)

Aux 1

connection

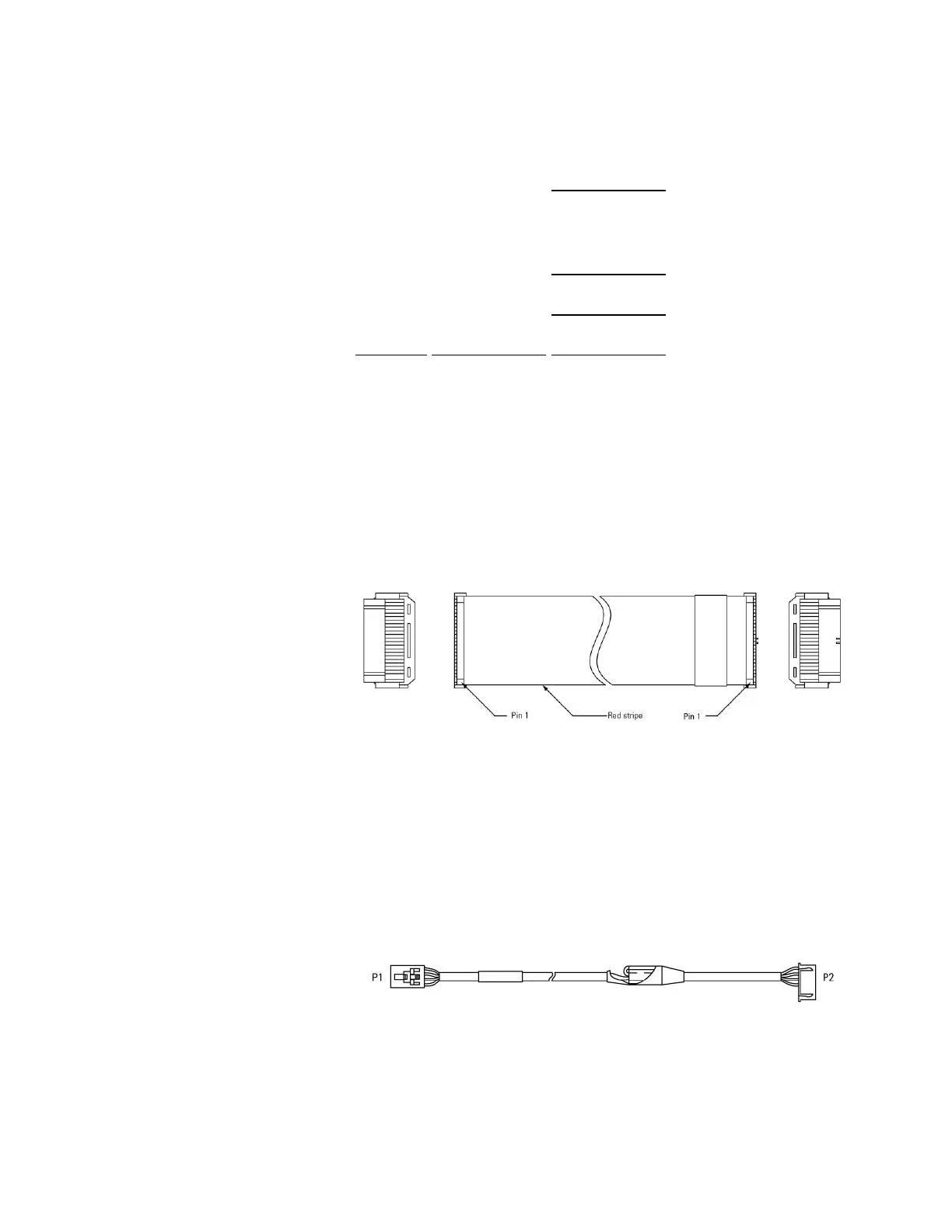

Keyboard display cable

Part number G4350-60514

This harness connects the keyboard and display to the logic

board at P8.

Display Cable Assembly

Part number G4350-60515

This cable provides the connection between the display board

and interconnect board.

Main Page
