Agilent 7820 GC Service

383

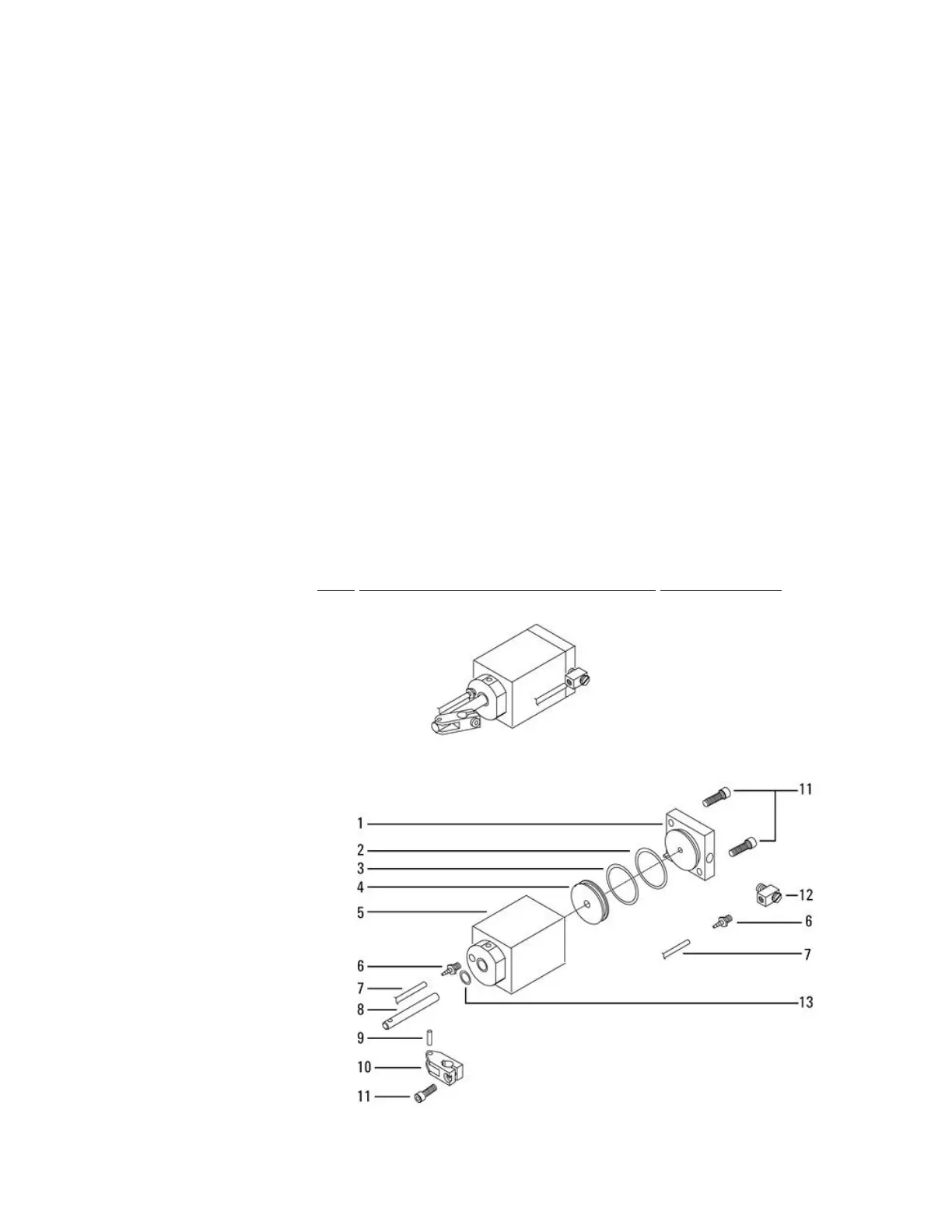

Valve actuator assembly (2 of 2)

Ite

Description

Part number

Qty

Cylinder end cap

19325-20680

O-ring, 1.176-inch id

0905-1405

O-ring, 1.046-inch id

0905-0463

Piston

19325-20640

Actuator cylinder

19325-20630

Hose fitting

5185-8386

PTFE tubing 5m, 1.5mm ID, 3mm OD

5062-2483

Piston rod

19325-20650

Dowel pin

1480-0017

Link

19325-80010

Screw, socket head, M4 x 8 mm

0515-0153

Elbow fitting

5185-8385
