Agilent Technologies 7820A Service Manual

178
Agilent 7820 GC Service
Analog signal outputs
There is one channel of analog output available on the back
panel, labeled Analog Out. Two cables are available — one for
3395/6 series integrators and one for general use.

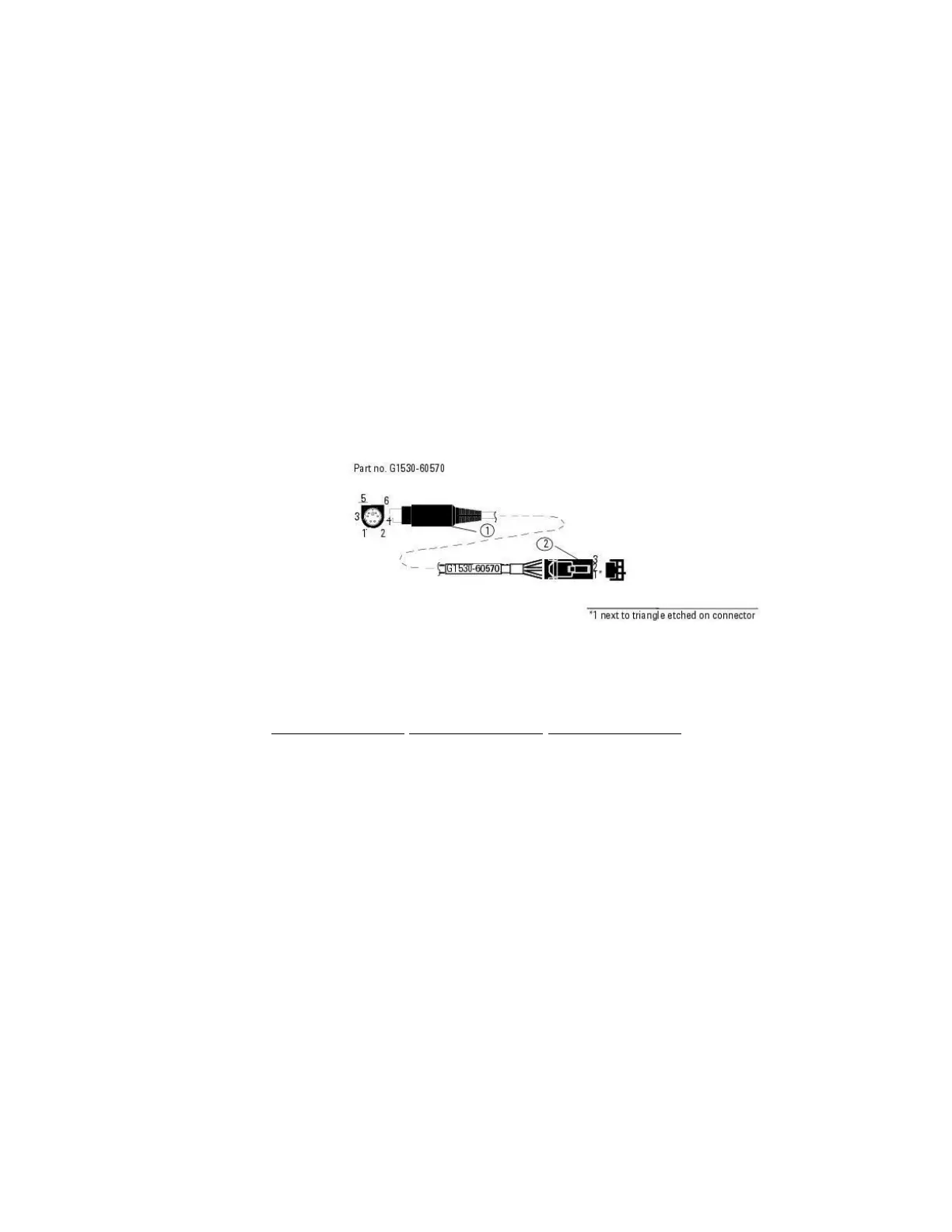

Analog cable: GC to 3395A/B or 3396B/C
Integrators and 35900 C/D/E Analog to
Digital Interface instrument
Connector 1
Signal Name
Color
Connector 2
4
1 V
Black
3
2
Common
White
2
Shell
Ground
Orange
1
