Agilent Technologies 7820A Service Manual

Agilent 7820 GC Service
191
20
White/Black
Yes
F DET (4)
Available connections
Connector
Use
EPC1
Front inlet EPC module or
PCM
EPC2
Back inlet EPC module or
PCM
EPC3
Front detector EPC module
EPC4
Back detector EPC module
F-DET
Front detector signal
board
B-DET
Back detector signal board

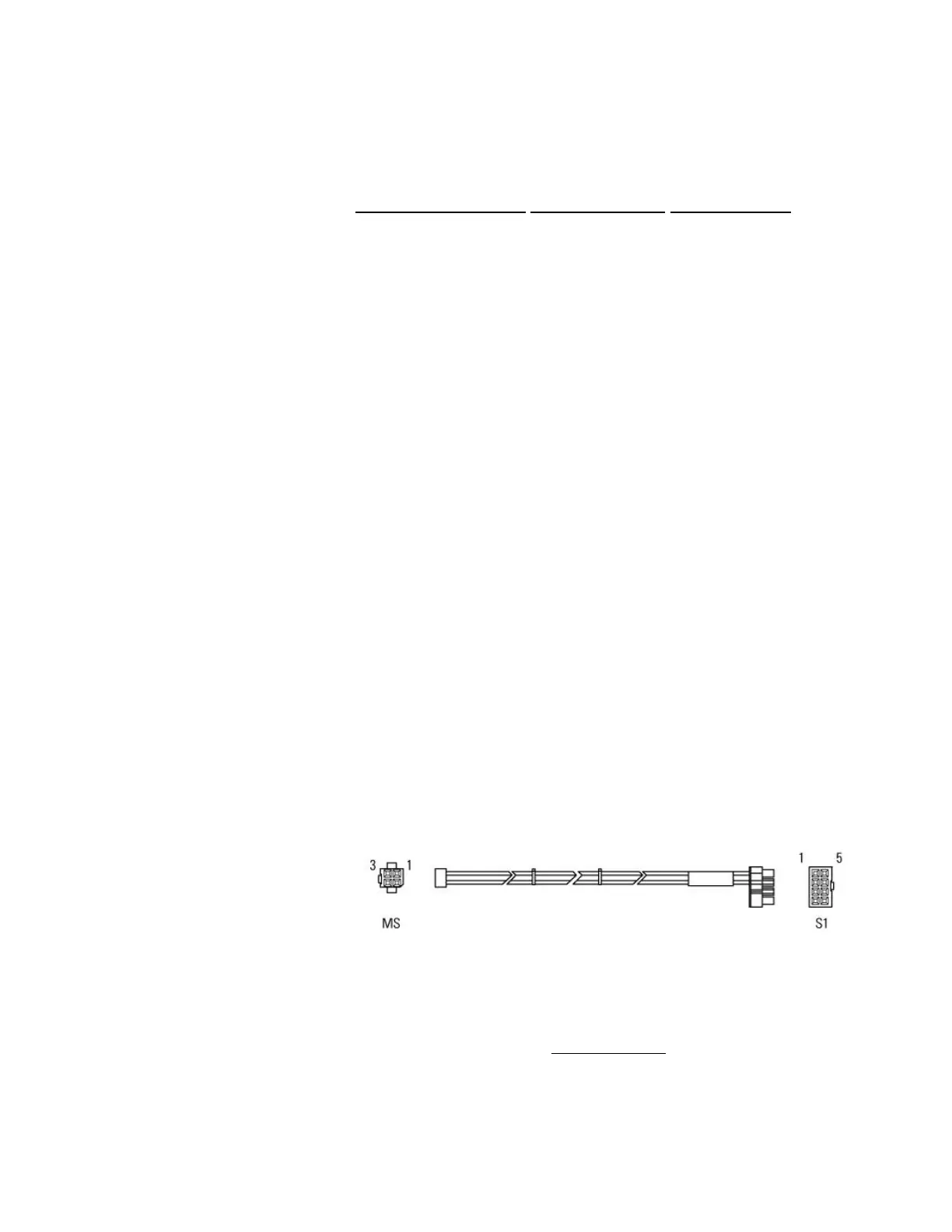

7820 GC/MS Second Inlet Upgrade Harness
Part number G4350-60536
Use this cable to connect to an MSD transfer line if the 7820A
GC has a back inlet installed. This cable connects to the analog
and power board (at P22). (Normally, an MSD transfer line uses
the back inlet heater connector.)
Connection table
S1 pin
Wire color
Destination
(pin)
Signal
1
Violet
MS (2)
Aux1-Sense
2
Green
MS (4)
Heater COM
3
No
connection
