Agilent Technologies 7820A Service Manual

108
Agilent 7820 GC Service
Reassembling the FPD
This part of the procedure reassembles the optics assembly with
the transfer line, reconnects both to the detector bracket,
replaces the heater/sensor and ignitor wires, replaces the covers
and PMT.

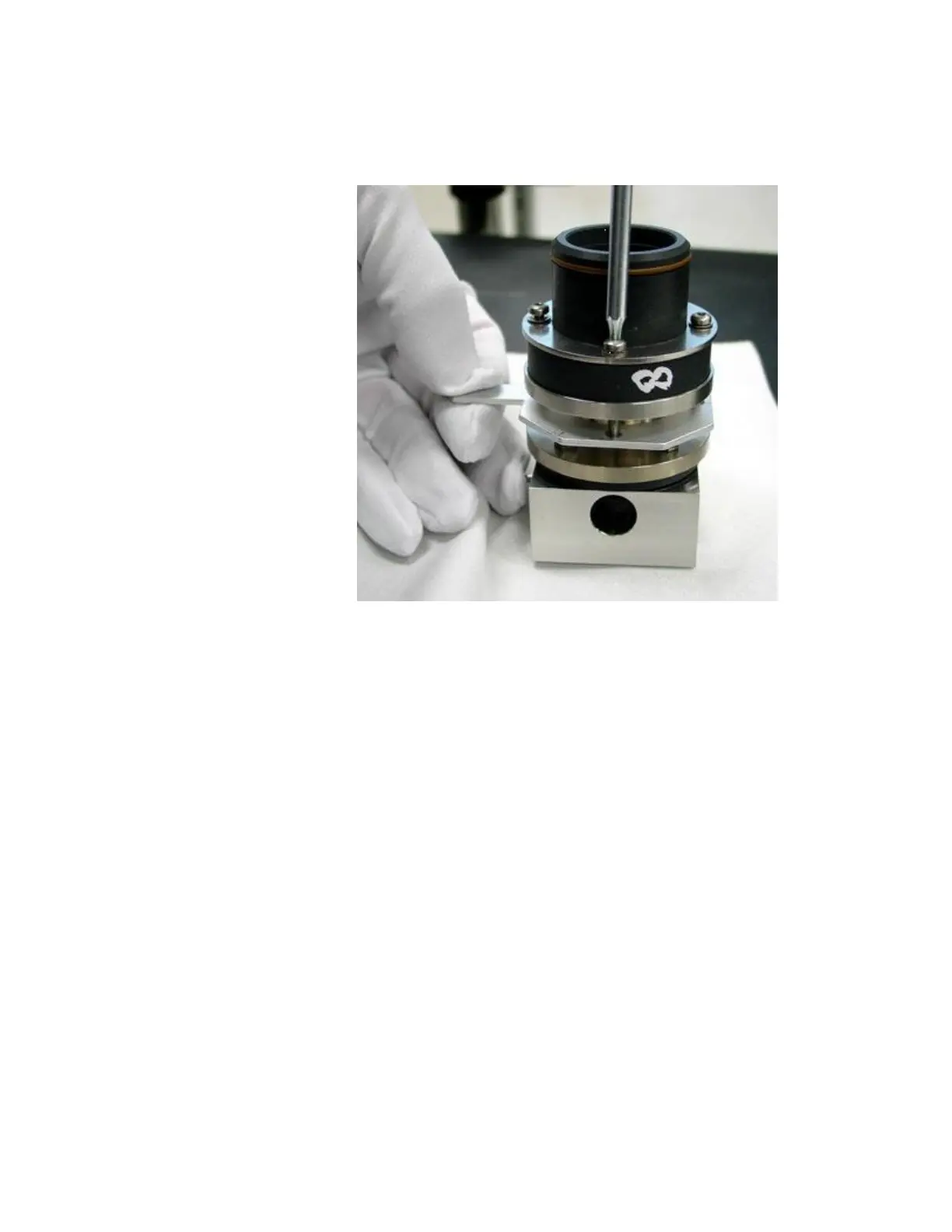

1 Replace or install the O-ring on the transfer line jet. Remove
the O-ring with a small pick. Place the new O-ring over the
jet. Roll it into the groove below the jet.
