Agilent 7820 GC Service

317

Flame Ionization Detector (FID)

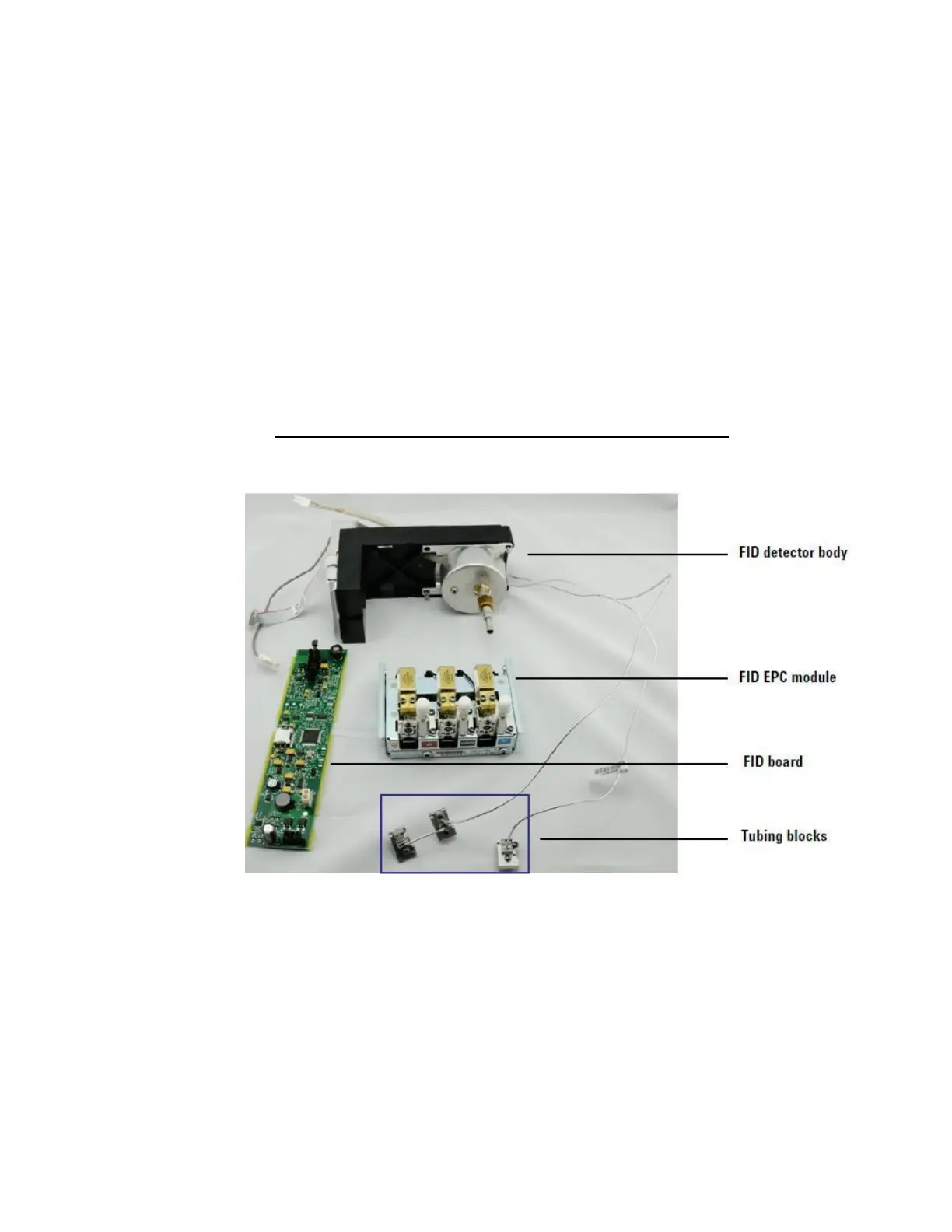

Top level subassemblies for new version FID accessory:

 G4331A FID with EPC (New version detector).

Description

Part number

FID detector body, adaptable, no signal board, no

EPC module, no ship kit (New version detector)

G4331-67518

FID EPC module (For new version detector)

G4331-67531

FID Signal Board

G3431-60020
