340

Agilent 7820 GC Service

Nitrogen Phosphorus Detector (NPD)

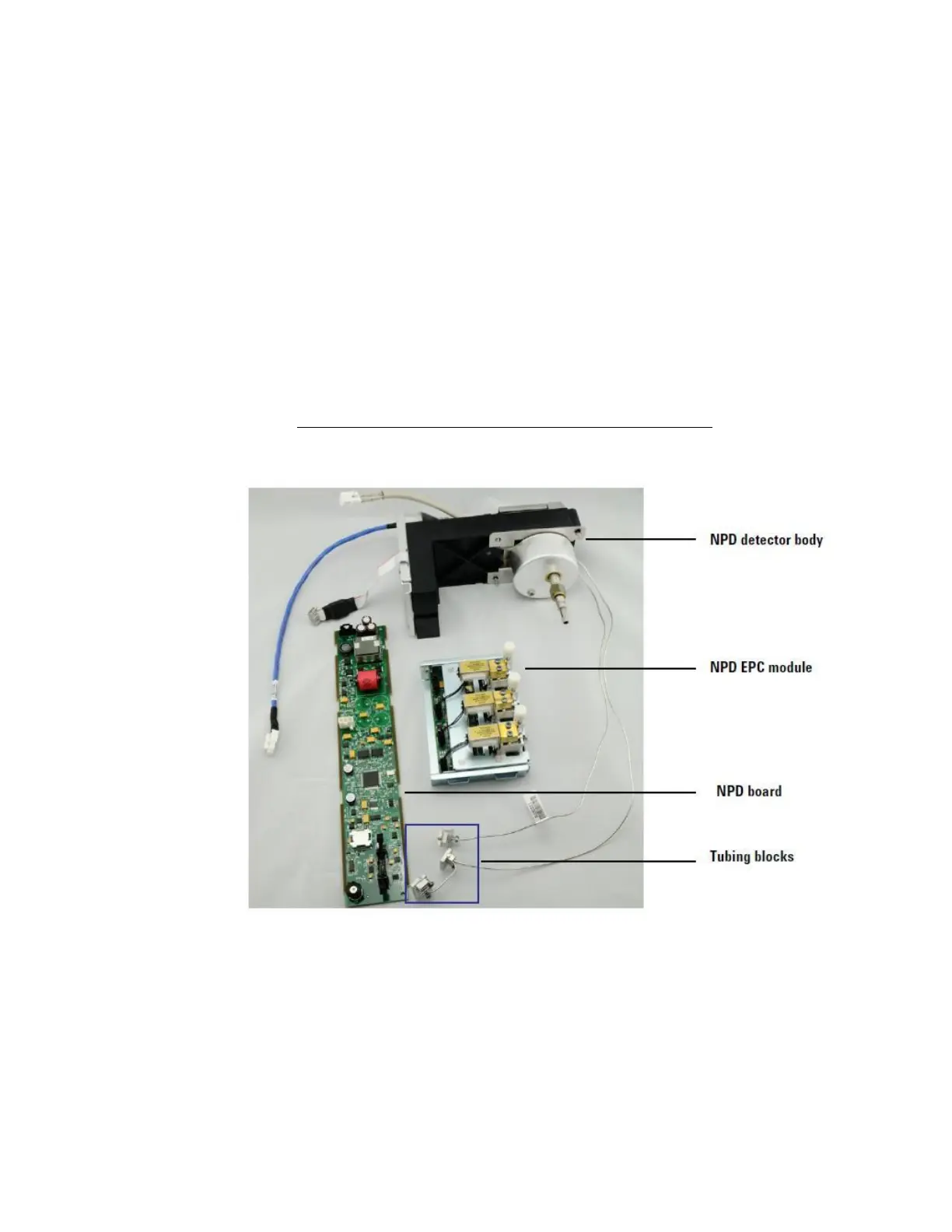

Top level subassemblies for new version NPD accessories:

 G4334A NPD with EPC (New version detector)

Description

Part number

NPD detector body, adaptable, no signal board,

no EPC, no ship kit (New version detector)

G4334-67518

NPD EPC module (For new version detector)

G4334-67502

NPD Signal Board

G3434-60021
