376

Agilent 7820 GC Service

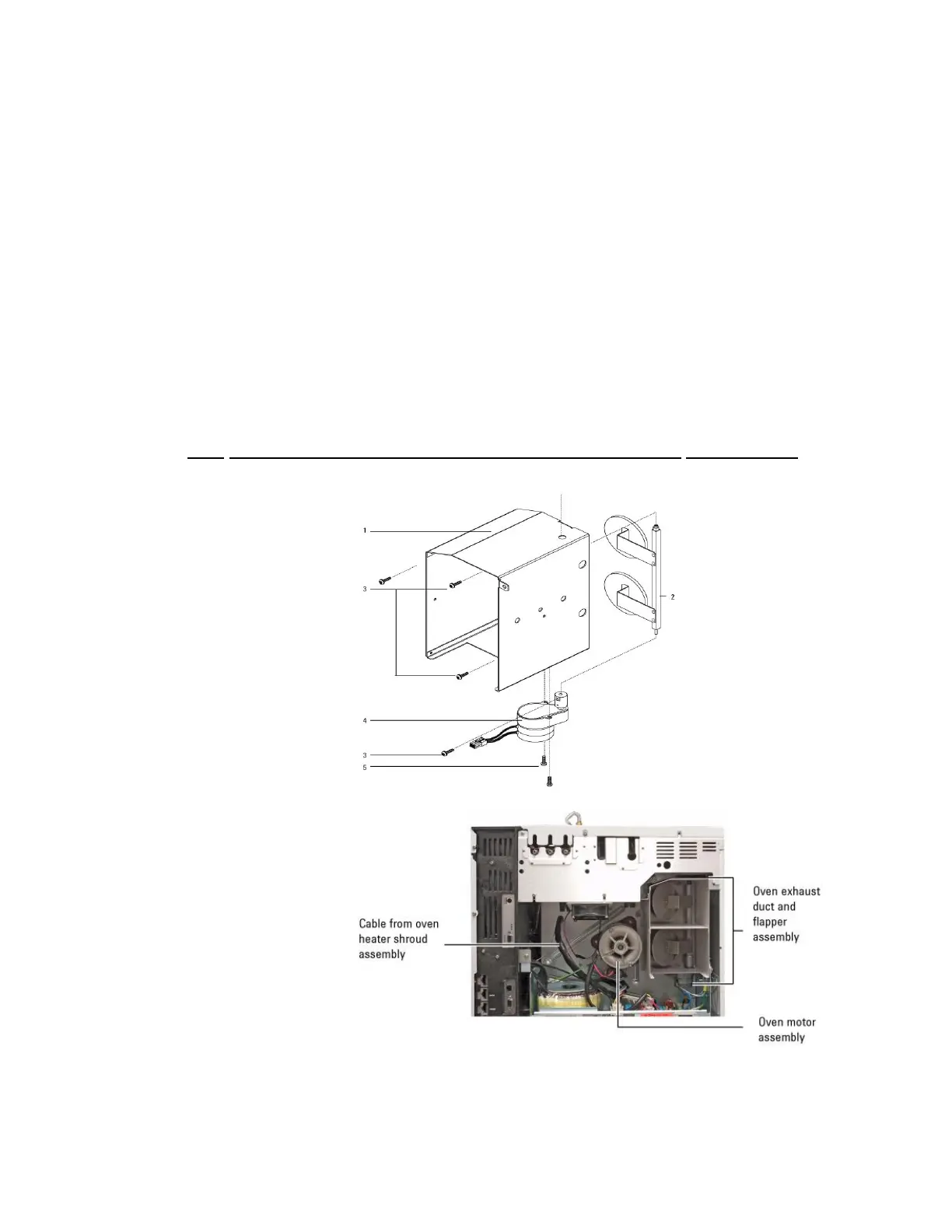

Oven flapper assembly

Ite

Description

Part number

Qty

Oven exhaust duct and flapper assembly (includes

3 captured screws 1390-1023)

G1530-60770

Dual duct assembly

G1530-80680

Flapper shaft assembly

G1530-80560

Screw, Torx T-20, M4 x 12 mm

0515-2496

Stepper motor assembly

G1530-60940

Screw, Torx T-10, M3 × 8 mm (to attach motor to duct)

0515-0655
