176

Agilent 7820 GC Service

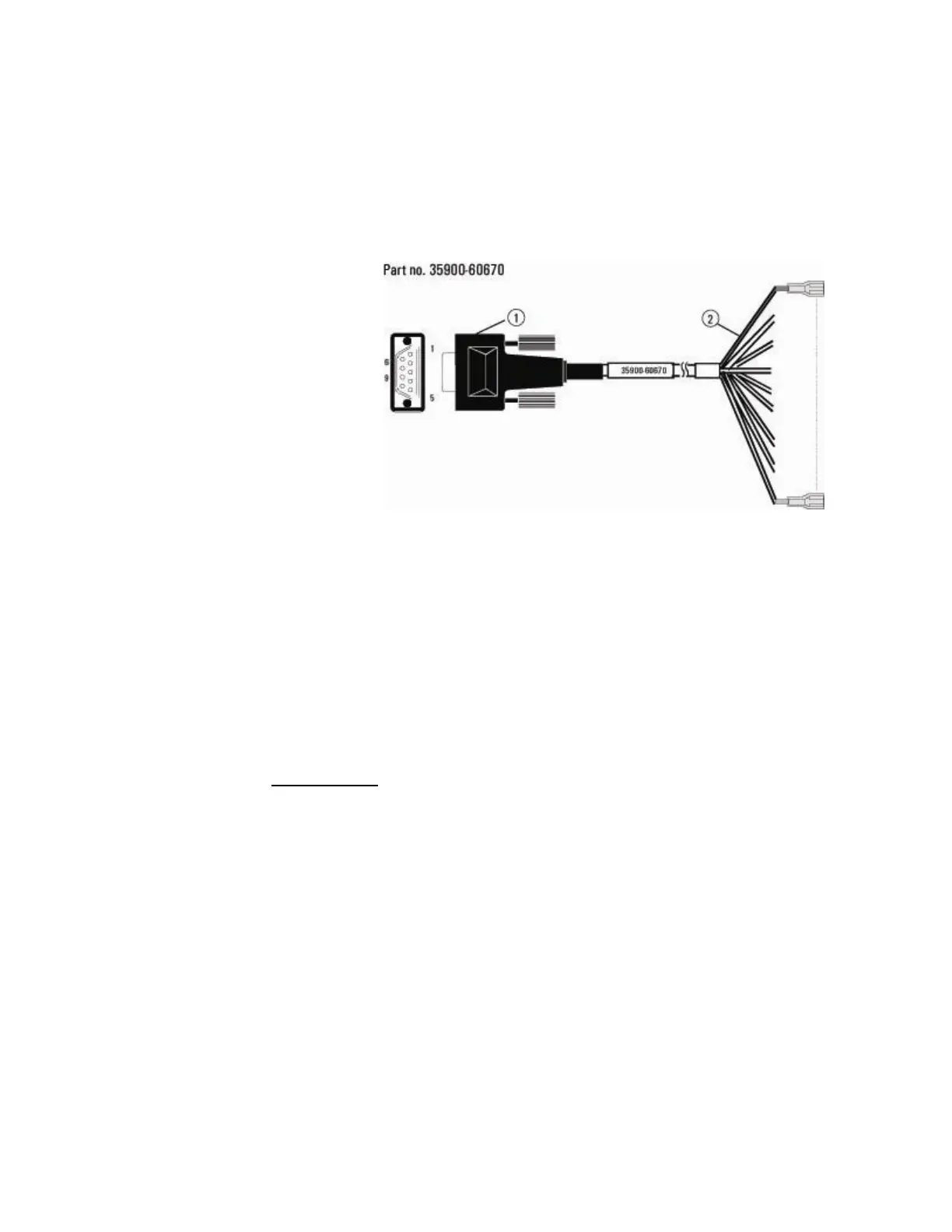

Cable pinouts, remote start/stop, general

use

Connector 1

9 pin

(male)

Signal name

Connector 2

(spade

lugs)

GND

Black

Prepare (low true)

White

Start (low true)

Red

Start relay

Green

Start relay

Brown

No connection

Blue

Ready (high true input)

Orange

Stop (low true)

Yellow

No connection

Violet
